There's no need for a transformer or power supply, this 30-watt AC/LED plate operates directly on 230 volts alternating current thanks to its built-in transistorised power supply.
Installation of this LED plate requires the use of an aluminium heat exchanger for good passive air cooling with a light application of thermal paste between the two surfaces to properly evacuate the calories emitted by the LED source.

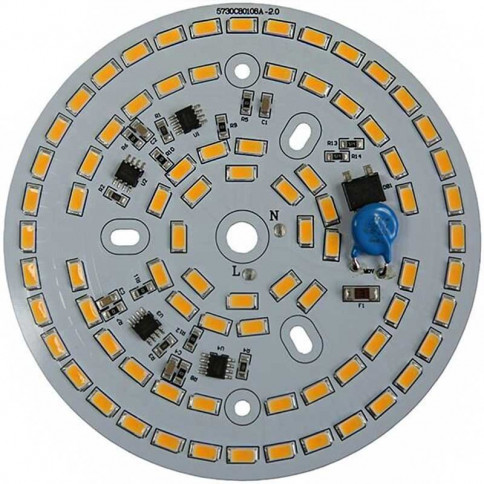

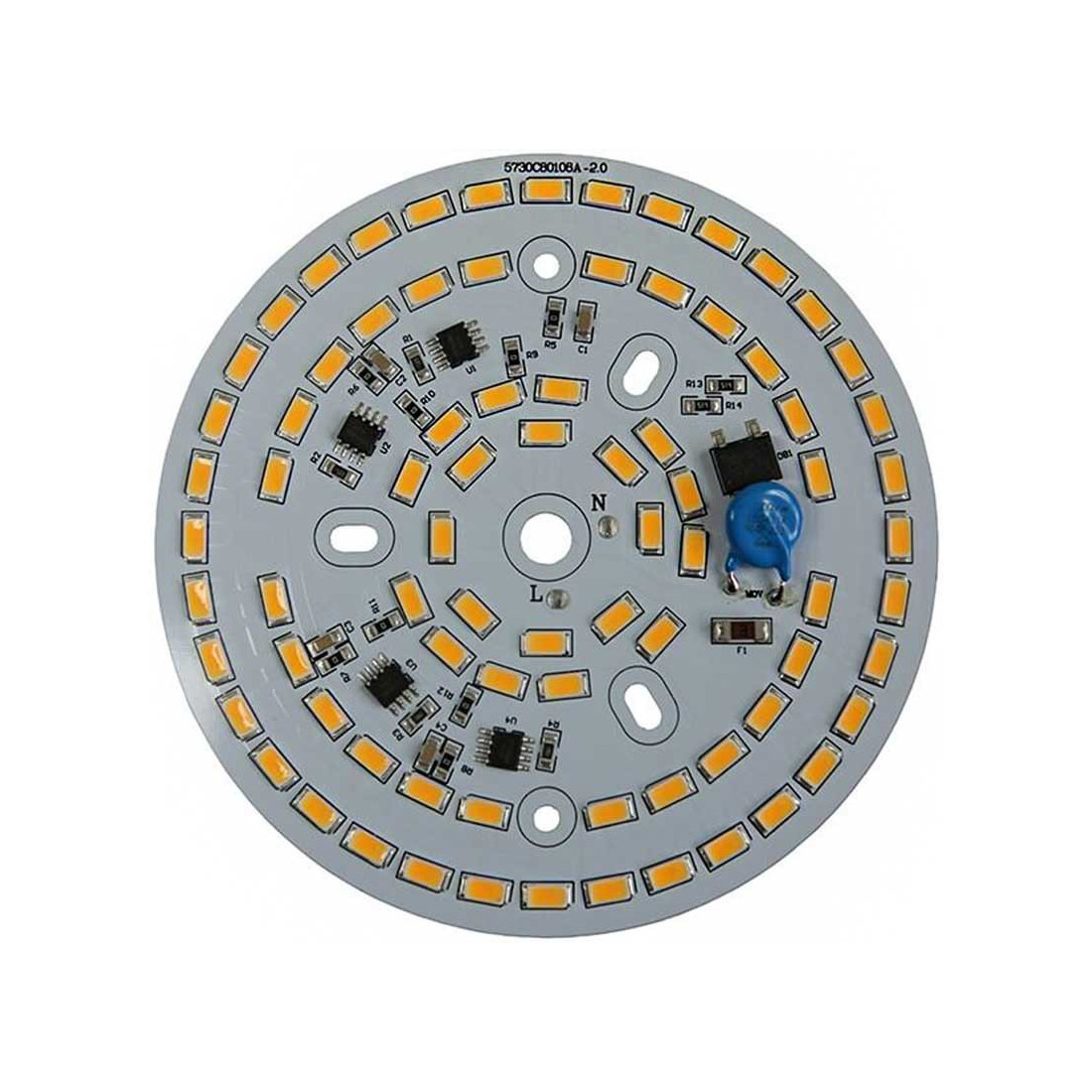

The 80 5730 SMD LEDs are arranged uniformly on this 107 mm diameter plate to distribute the light evenly.
With just 30 watts, it can be integrated into your old luminaires, saving you real money.
It diffuses an impressive 2550 lumens of light, with the same luminous power as a 250-watt halogen bulb.
Product description :
Number of LEDs: 80 LED 5730
PCB diameter: 107 mm
Transistor power supply (integrated on the PCB)
Consumption: 233 V - 0.147 A - 1 Cos = 34.2 watts
Cosine phi power factor: 1
Dimming capability: no
Luminous efficacy: 85.72 Lumens per watt
Equivalent to a 250-watt halogen lamp
Brightness: 2550.54 Lumens white
Colour: white 6268 K, warm white 2752 K
Colour rendering index: white 70.8 ra
Angle of illumination: 180
Life: 30,000 hours
No UV or infrared radiation
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0 for the proposed lighting colours, i.e. it presents no photo-biological hazard.
