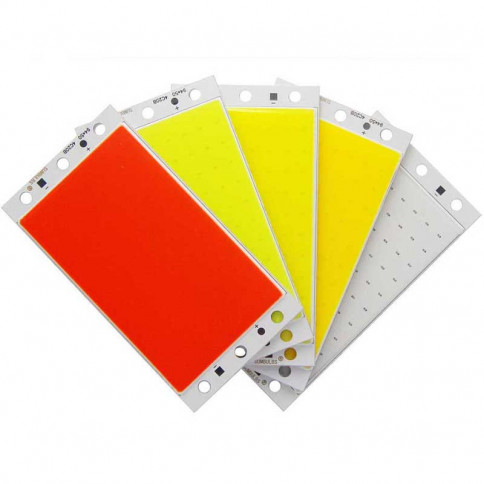

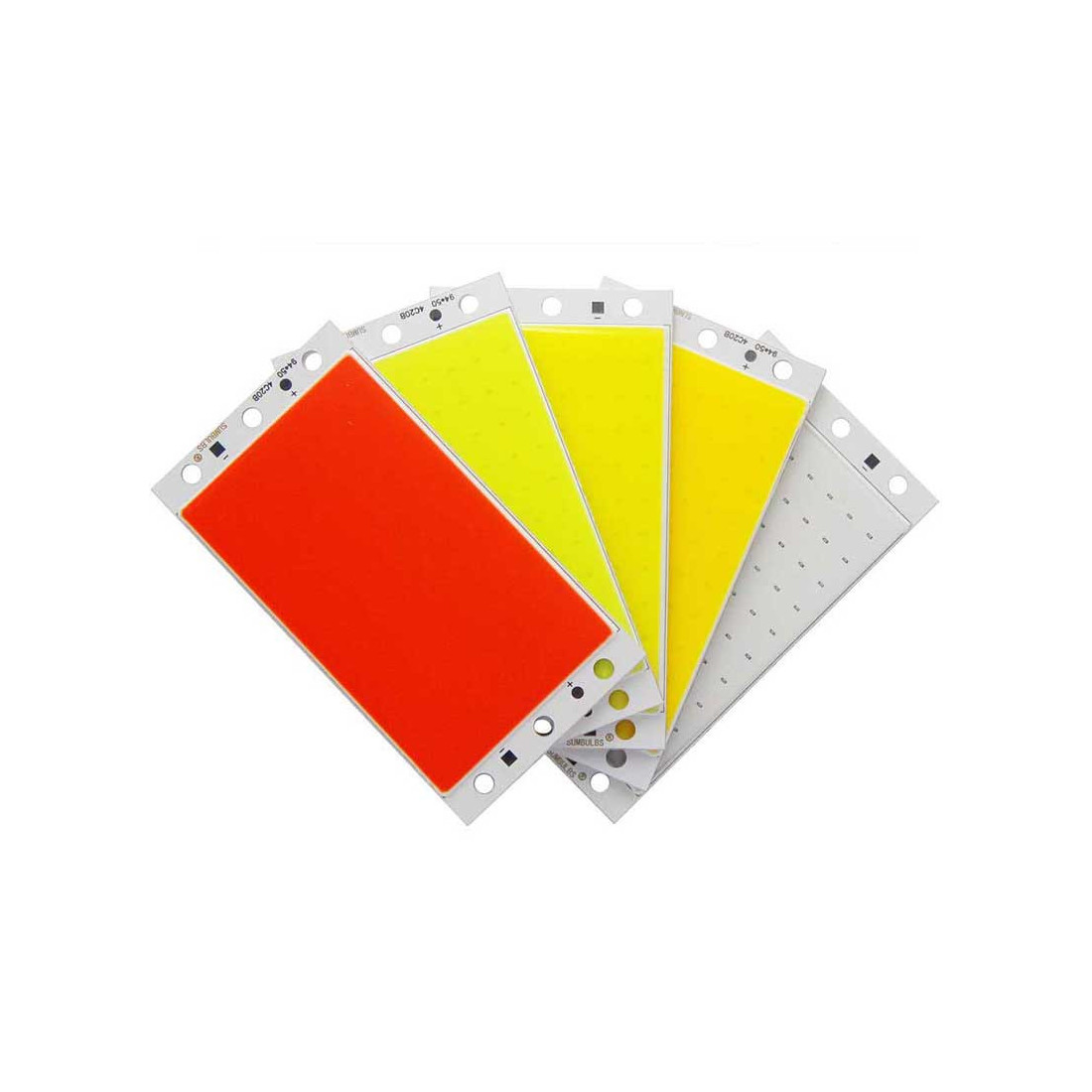

Build or modify your own luminaires with this 15-watt COB LED.
A heat sink will be required with a thermal paste bond to ensure an operating temperature of less than 75° on the emission layer and an ambient temperature of less than 50°.
Product description :
LED type: 15 watt Multi Chip On Board
Number of cores: 72 0.2-watt chips
Voltage: Specific supply 12 to 14 volts 450mA
Amperage: 450 mA
Light output: 1475 lumens
LED chip dimensions: L 80 mm x W 48 mm
Overall module dimensions: L 94 mm x W 50 mm x Thickness 3 mm
Colour temperatures: white 6000 kelvin, light warm white 4000 kelvin, warm white 3000 kelvin, red and blue
Diffusion angle: 150
Dimming: not compatible
Power consumption: 15 watts
