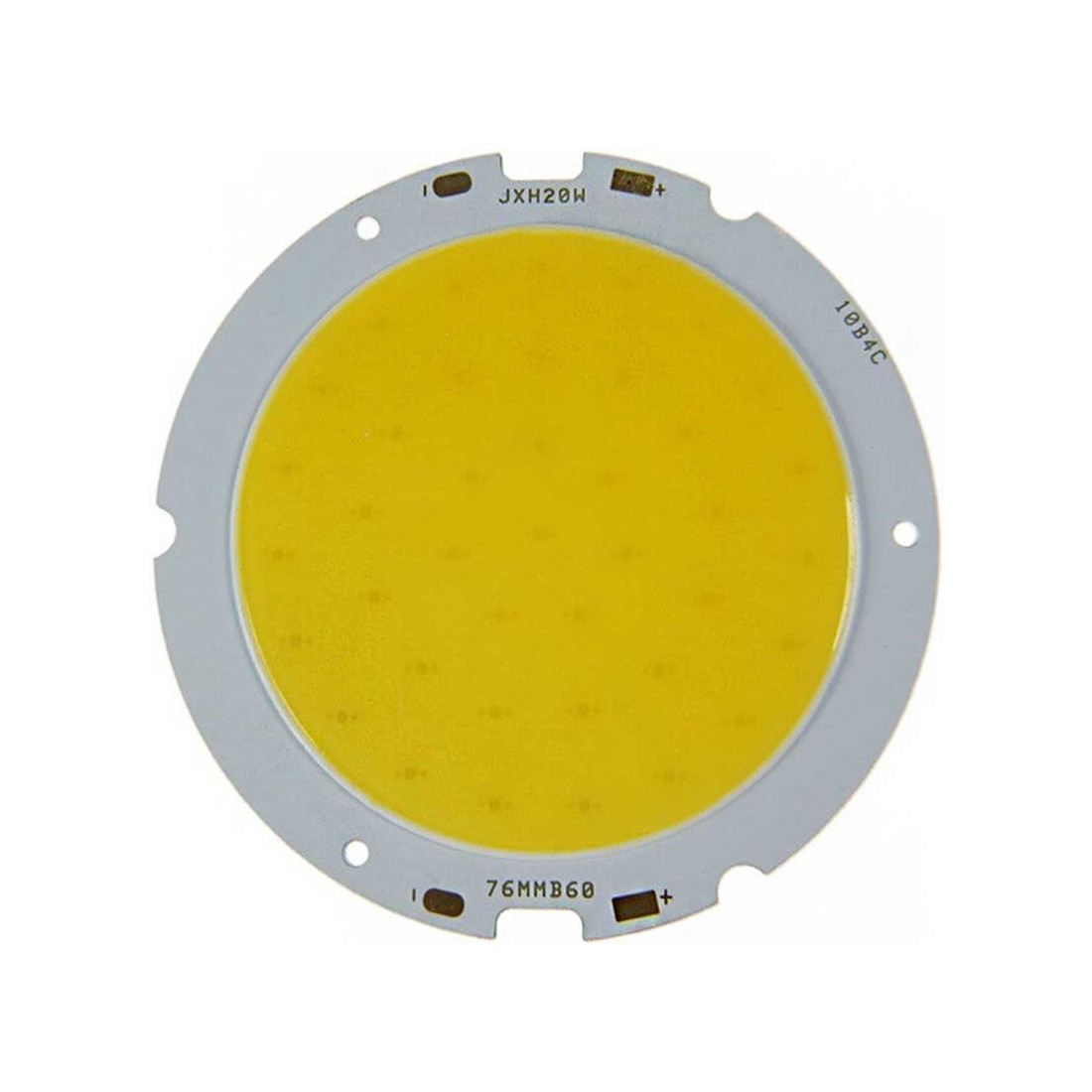

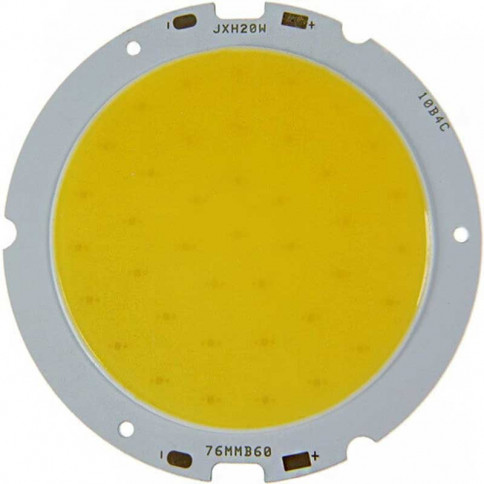

A 20 watt Multi Chip on board LED with a 60mm diameter emissive surface LED source, diffusing a luminous flux of 1975 Lm.
Build or modify your own luminaires with this 20 watt COB LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emitting layer and an ambient temperature of less than 50°.
Product description :
LED type: 20 watt Multi Chip On Board
Number of cores: 40 0.5-watt chips
Voltage: Specific supply 32 to 34 volts 260mA
Amperage: 260 mA
Light output: 1975 Lm white, 1794 Lm warm white
LED chip diameter: 60 mm
Outer dimension of PCB: Ø76 mm
PCB thickness: 2.3 mm
Colour temperatures: white 5800 K, warm white 3300 K
Diffusion angle: 150°.
