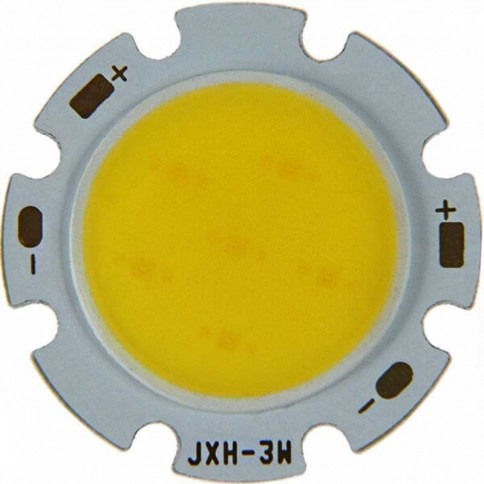

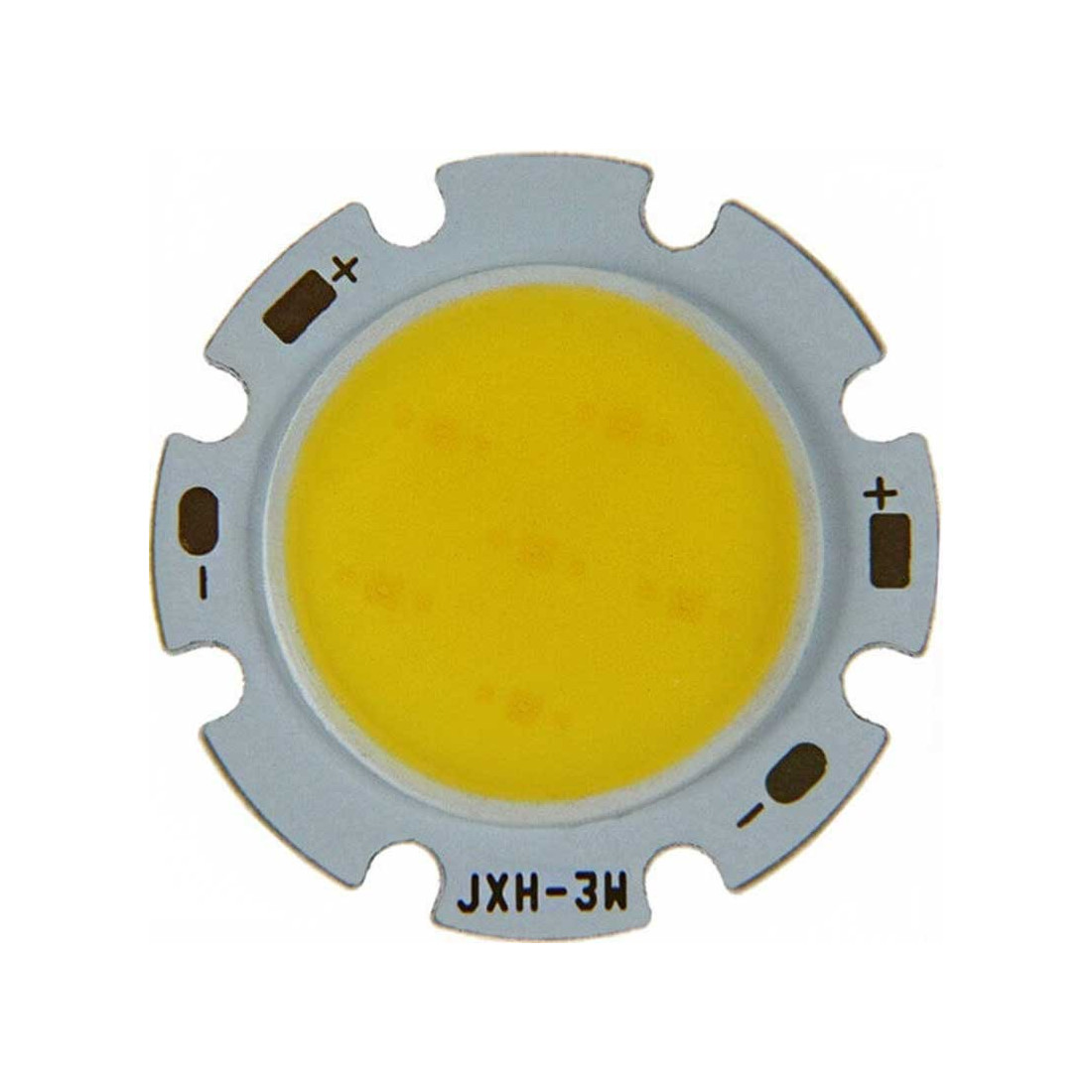

A 3 Watt Multi Chip on board LED with a 20 mm diameter surface emitting LED source, it diffuses a luminous flux of 288 Lm.
Build or modify your own luminaires with this 3 watt COB LED.
A heat sink will be required with a thermal paste connection to ensure an operating temperature of less than 75° on the emitting layer and an ambient temperature of less than 50°.
Product description :
LED type: 3 watt Multi Chip On Board
Number of cores: 6 x 0.5 watt chips
Voltage: Specific supply 9.6 to 10.5 volts 260mA
Amperage: 260 mA
Light output: 288 Lm
LED chip diameter: 20 mm
Outer dimension of PCB: Ø 28 mm
PCB thickness: 2.3 mm
Colour temperatures: white 5800 K, warm white 3300 K
Diffusion angle: 150°.
