There's no need for a transformer or power supply, this 2-watt AC/LED plate operates directly on 230 volts AC thanks to its built-in transistorised power supply.
Installation of this LED board will require the use of an aluminium heat exchanger for good passive air cooling with a light application of thermal paste between the two surfaces to properly evacuate the calories emitted by the LED source.

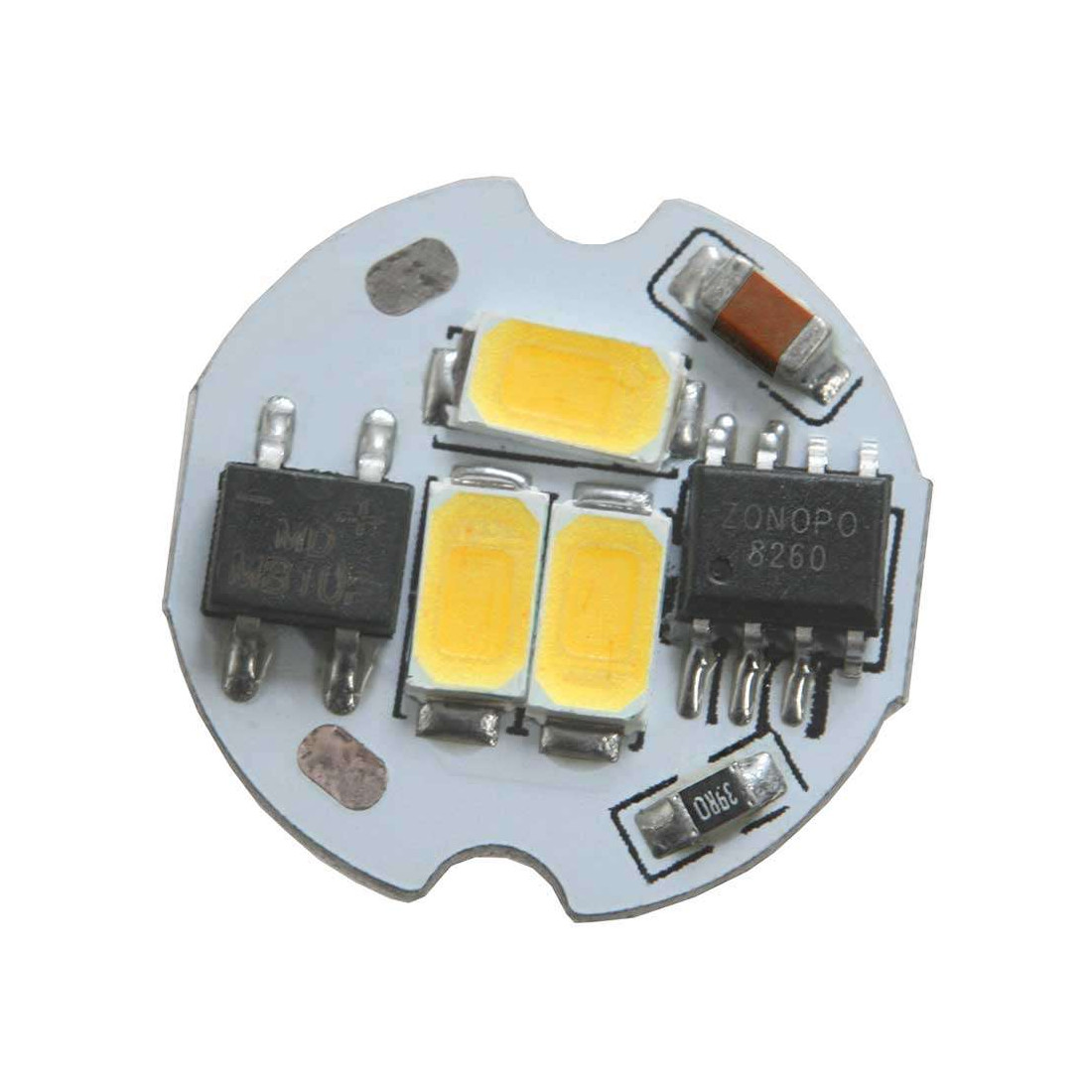

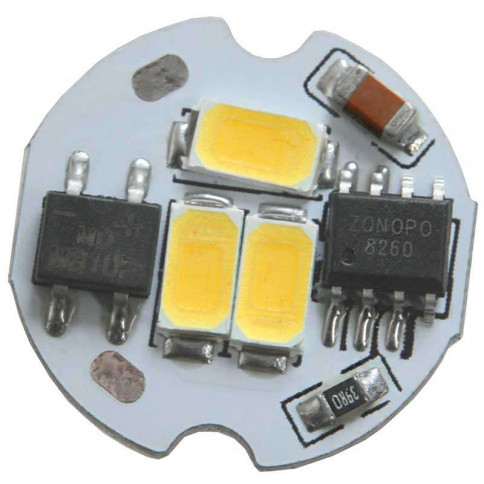

The 3 5630 SMD LEDs are arranged uniformly on this 20 mm diameter plate to distribute the light evenly.
With just 2 watts, it can be integrated into your old luminaires, saving you real money.
It diffuses a beautiful luminosity of over 162 lumens, with a light output equivalent to a 20-watt halogen bulb.
Product description :
Number of LEDs: 3 SMD 5630 LEDs
PCB diameter: 20 mm
Transistorised power supply (integrated on the circuit board)
Power consumption: 2 watts
Cosine phi power factor: 1
Dimmability: no
Luminous efficacy: 85.02 Lumens per Watt
Equivalent to a 20-watt halogen lamp
Brightness: 162 Lumens white
Colour: white 6268 K warm white 2722 K
Colour rendering index: white 70.8 ra
Angle of illumination: 180
Life: 30,000 hours
No UV or infrared radiation
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0 for the proposed lighting colours, i.e. it presents no photo-biological hazard.
