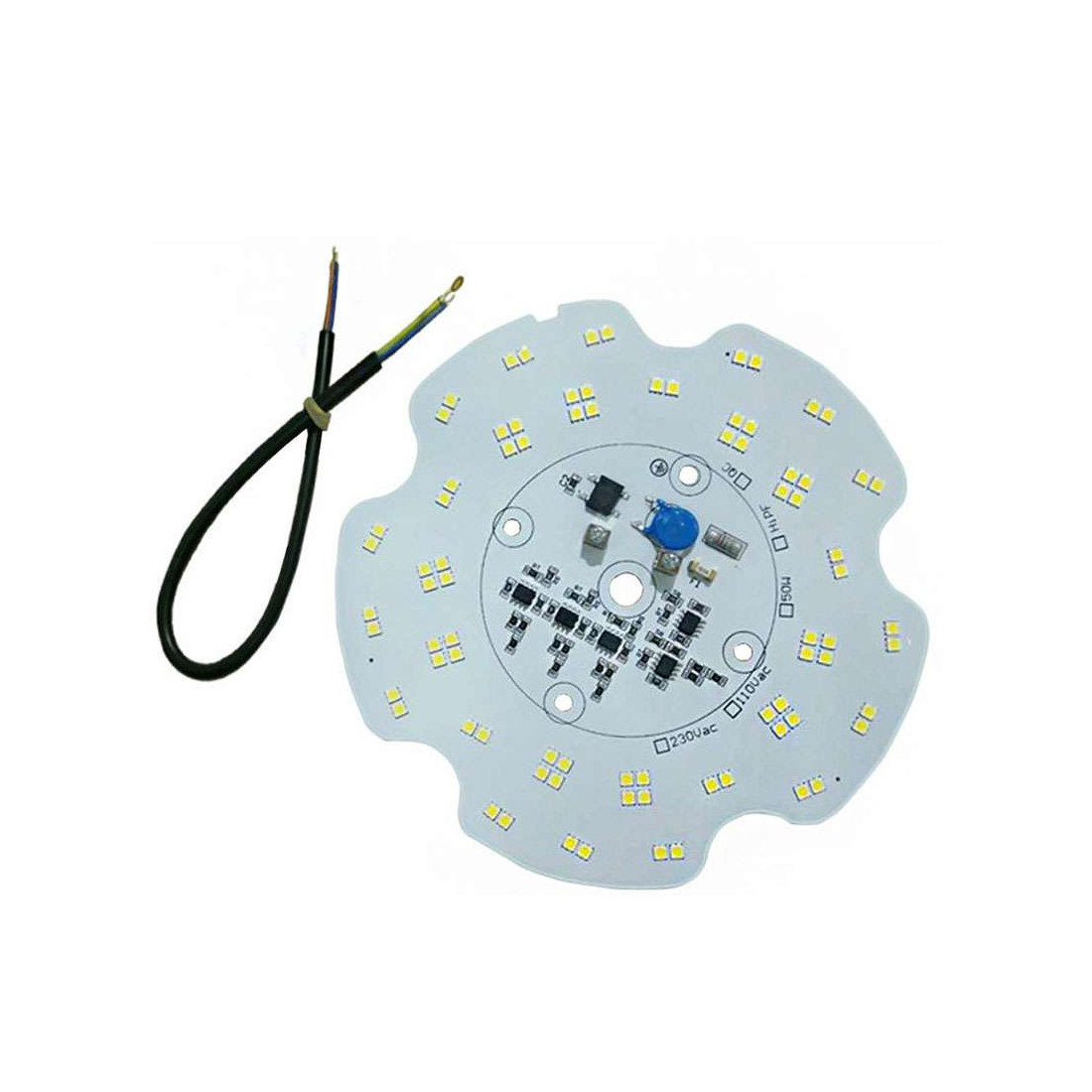

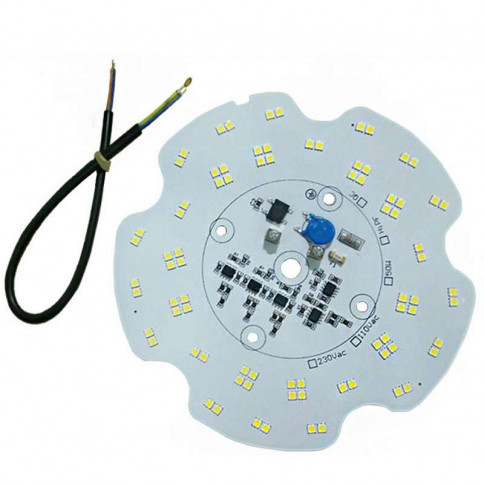

There's no need for a transformer or power supply, this 50-watt AC/LED plate operates directly on 230 volts alternating current thanks to its built-in transistorised power supply.
Installation of this LED board will require the use of an aluminium heat exchanger for good passive air cooling with a light application of thermal paste between the two surfaces to properly evacuate the calories emitted by the LED source.
The 75 2835 SMD LEDs are arranged uniformly on this 170 mm diameter plate to distribute the brightness evenly.
It will give off a high level of brightness, in excess of 6500 lumens, with a light output equivalent to a 200 watt halogen bulb
Product description :
Number of LEDs: 75 SMD 2835 Epistar LEDs
PCB diameter: 166 mm
Transistor power supply (integrated on the PCB)
Power consumption: 50 watts
Cosine phi power factor: 1
Dimmability: no
Luminous efficacy: 130 Lumens per Watt
Equivalent to a 200-watt halogen lamp
Light output: 6500 Lumens white
Colour: white 6000 kelvin, light warm white 4000 kelvin, warm white 3000 kelvin
Colour rendering index: white > 80ra
Angle of illumination: 180
Life: 50,000 hours
No UV or infrared radiation
This product is certified to CE, RoHS and IEC 62471 standards (photo-biological risk safety).
It is classified as risk group 0, for the proposed lighting colours, i.e. it presents no photo-biological hazard.
