Unquestionably one of the best modular dimmers for LED lamps that we've been able to test to date.
It offers the best compatibility with the multitude of dimmable LED lamps available on the market.
It's easy to use, with progressive, stable dimming from 5% to 100% without flicker, plus an on/off button on the remote control.
Dimming in 230 volts, but also in low voltage with a suitable 12 or 24 volt driver dimming transformer.
Manage your lighting using home automation : this dimmer can be linked to the various remote controls available as an option at the bottom of the product data sheet, as well as your smartphone or digital tablet via a small additional WiFi module.
What's more, with its 2.4G RF connection, it can be controlled with a multitude of remote controls or even with an application via your smartphone or digital tablet on IOS or Android App with the optional WiFi controller. (See the various accessories at the bottom of the product data sheet).
This dimmer works perfectly with all the remote controls available as accessories at the bottom of the product sheet.
Take control of one or more dimmers. The Match key button lets you link the remote control to the dimmer zone by zone, for example with a multi-zone remote control.

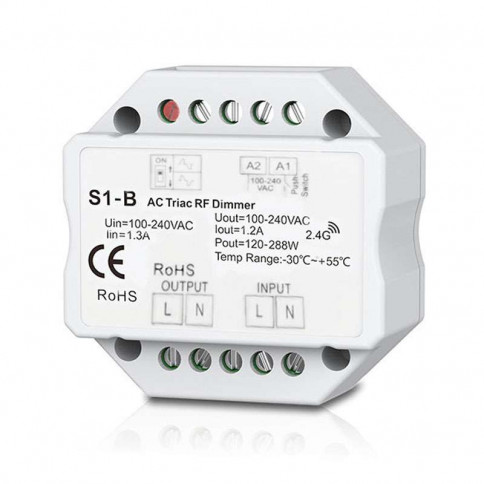

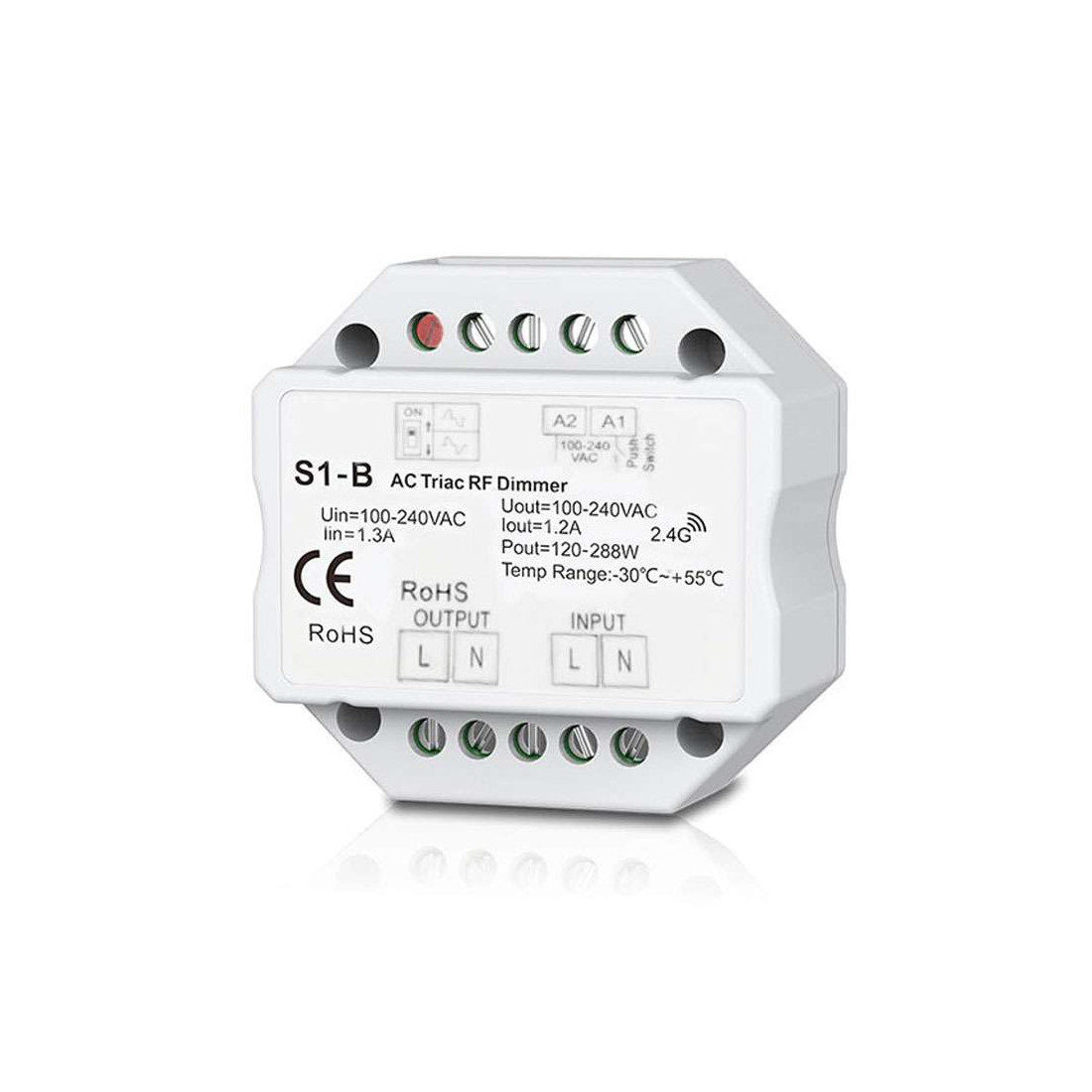

This small, modular dimmer fits neatly into a wall socket or light fitting.
Programming an areato be lit (or a luminaire) is very simple: when the power is switched on, simply press the button dedicated to that area (or luminaire) for 5 seconds. To remove a button from an area, simply press the same button for 10 seconds when the power is switched back on.
Select the most appropriate dimming mode for your bulbs using the switch to control either an ascending phase cut or a descending phase cut.
Generally speaking, a downward phase cut-off is more appropriate for LED bulbs, whereas an upward phase cut-off is more suitable for halogen bulbs.
A simplified 230-volt installation is wired with two phase and neutral input cables on the IN terminal block and two output cables to the lamps on the OUT terminal block.
Product description:
Dimmable with RF 2.4G remote control (not supplied) or smartphone tablet App
Power: 240 watts 230 volts AC
Power supply 100 240V (50Hz / 60Hz)
Material: ABS shell
Module dimensions: 52mm x 52mm x 26mm
Safety standards: CE and ROHS
Push-button control is optional and won't be necessary if you choose to use RF remote control or your smart phone to control your installation.
