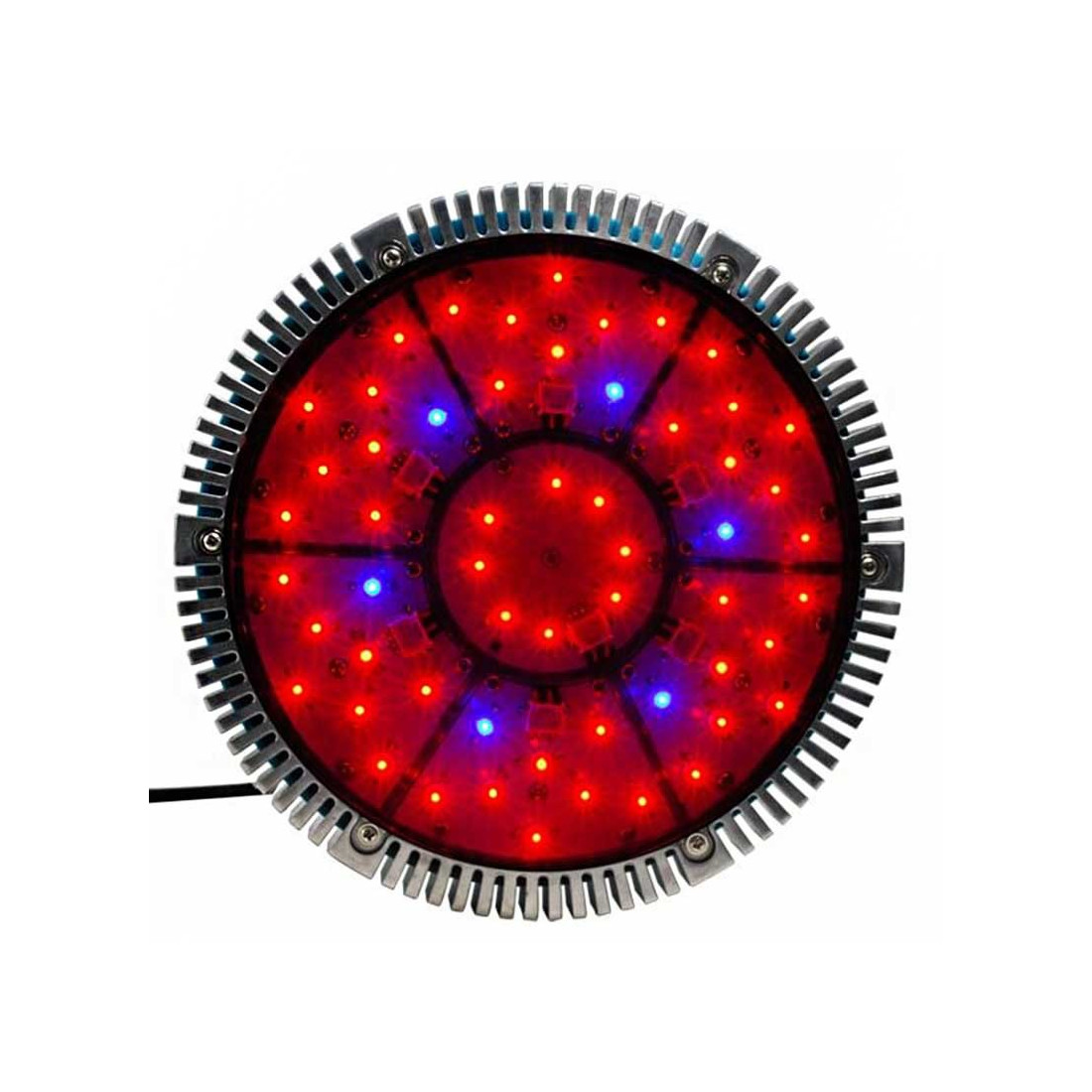

The Vireo LED 225 watts is designed with two types of monochrome LED, blue for growth and red for flowering. They generate a very precise spectrum and their complementarity will ensure an abundant crop!
Two colours of LED, red and blue, are best suited to photosynthesis, with wavelengths of 460nm for blue and 630nm for red.
Almost 98% of the light spectrum from these spotlights is absorbed by plants.
This means that in an optimal growing configuration, it is possible to obtain the same yield results with this 225-watt Vireo LED floodlight as with a 400-watt HPS lamp.
|
Photosynthetically active radiation |
|||||||
|
Height (cm) |
20 |
40 |
60 |
80 |
100 |
150 |
200 |
|
RPA (umol m-2s-l) |
1167 |
310 |
140 |
73 |
46 |
19 |
10 |
|
Brightness (lux) |
30800 |
8970 |
4100 |
2160 |
1424 |
608 |
346 |
|
Illuminated area (M2) |
26.79 |
31.17 |
32.97 |
35.89 |
38.92 |
43.47 |
46.08 |
The projector is fitted with3-watt Higth Power LEDs, which are not used to 100% of their capacity in order to ensure optimum service life. 225 W (75 LED x 3 Watts = 225 W) represents the theoretical power of the product, its actual consumption is 143.8 Watts (230 V x 0.665 A x 0.94 Cos = 143.77 W).
Product description :
Number of LEDs: 75 Epistar LEDs of 3 watts each
LED ratio: 8:1 red and blue
Power supply: 110 to 240 Volts AC （50/60Hz）
Power consumption: 143.8 watts
Brightness: 7167.7 lm
Power factor cosine phi: 0.89
Construction: aluminium casting and ABS shell
Luminaire size: Ø 260mm x 130mm
Operating temperature : - 20° à + 40°
Protection rating: IP 33
Water content: 45%~95%RH
Lighting angle: 150
Service life: 50,000 hours
Three-point fixing system and power supply cable supplied.
Safety precautions:
This projector is not waterproof and is intended for indoor use only.
And we advise you not to look at the light for long periods, even with protective goggles.
click on the image to enlarge
click on the image to enlarge
Product data sheet :
|
Spectral Analysis |
