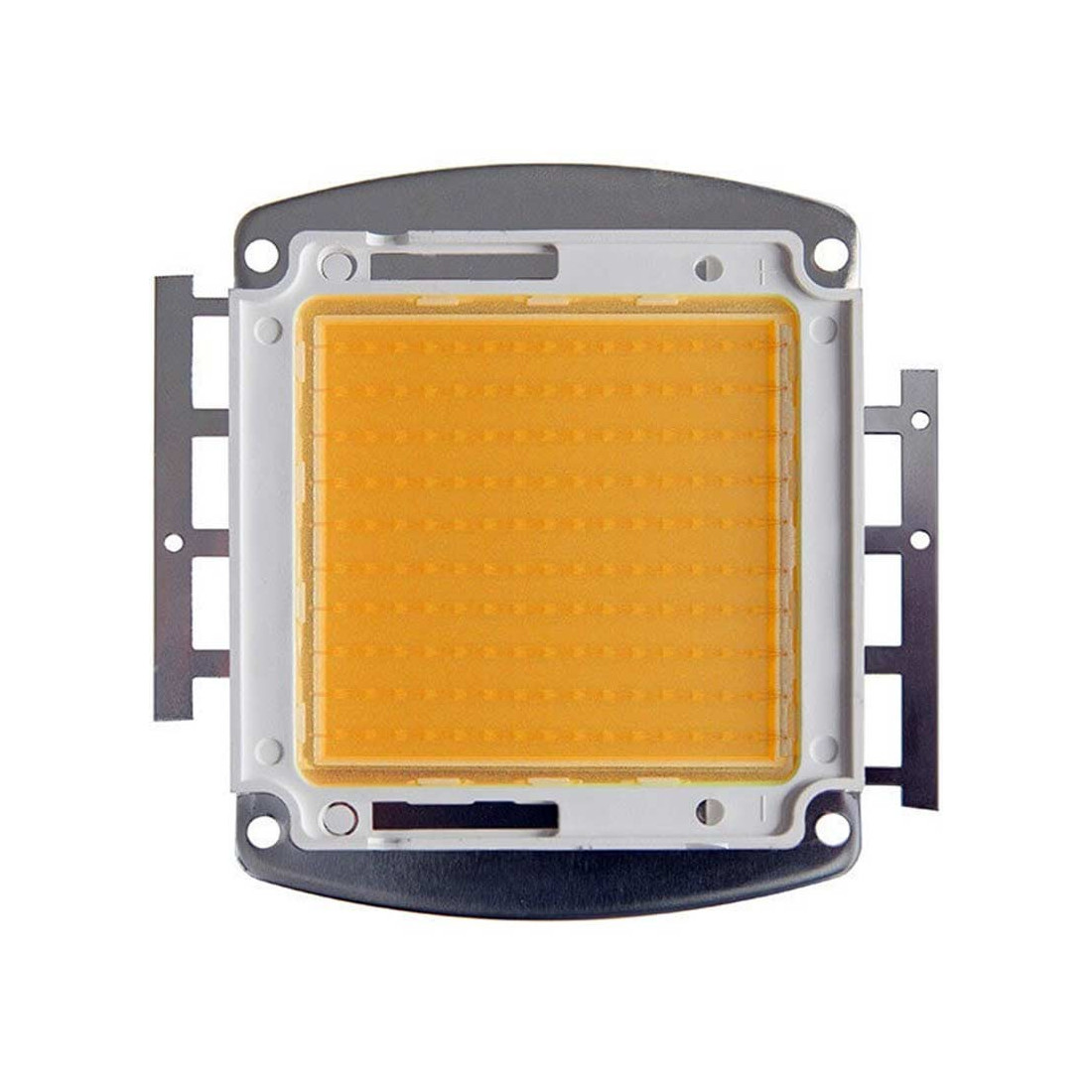

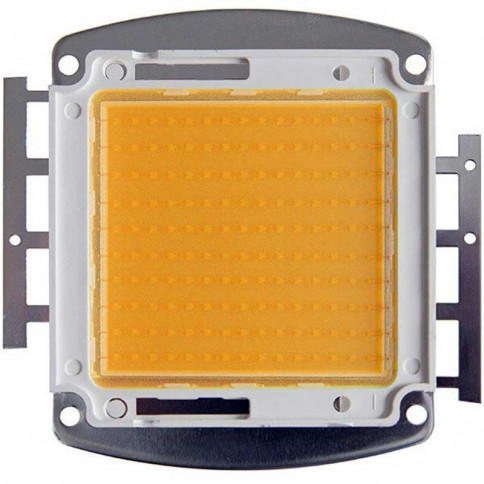

A 150 watt Bridgelux Chip on board LED with a luminous flux of 16000 Lumens.
Build or modify your own luminaires with this 150 watt COB LED.
A heat sink will be required with a thermal paste bond to ensure an operating temperature below 75° on the emission layer and an ambient temperature below 50°.
Product Description :
LED type: Bridgelux Multi Chip On Board 150 watts
Number of cores: 150 1-watt chips
45 Mil LED chip
Voltage: Specific supply 45 - 51 volts
Amperage: 3.5 A
Light output: 16000 Lumens
Outer dimension of PCB: 82 * 82mm
PCB thickness: 6.7 mm
Colour temperatures: white 6000K, warm white 3000 K
Diffusion angle: 150
Weight: 160g
