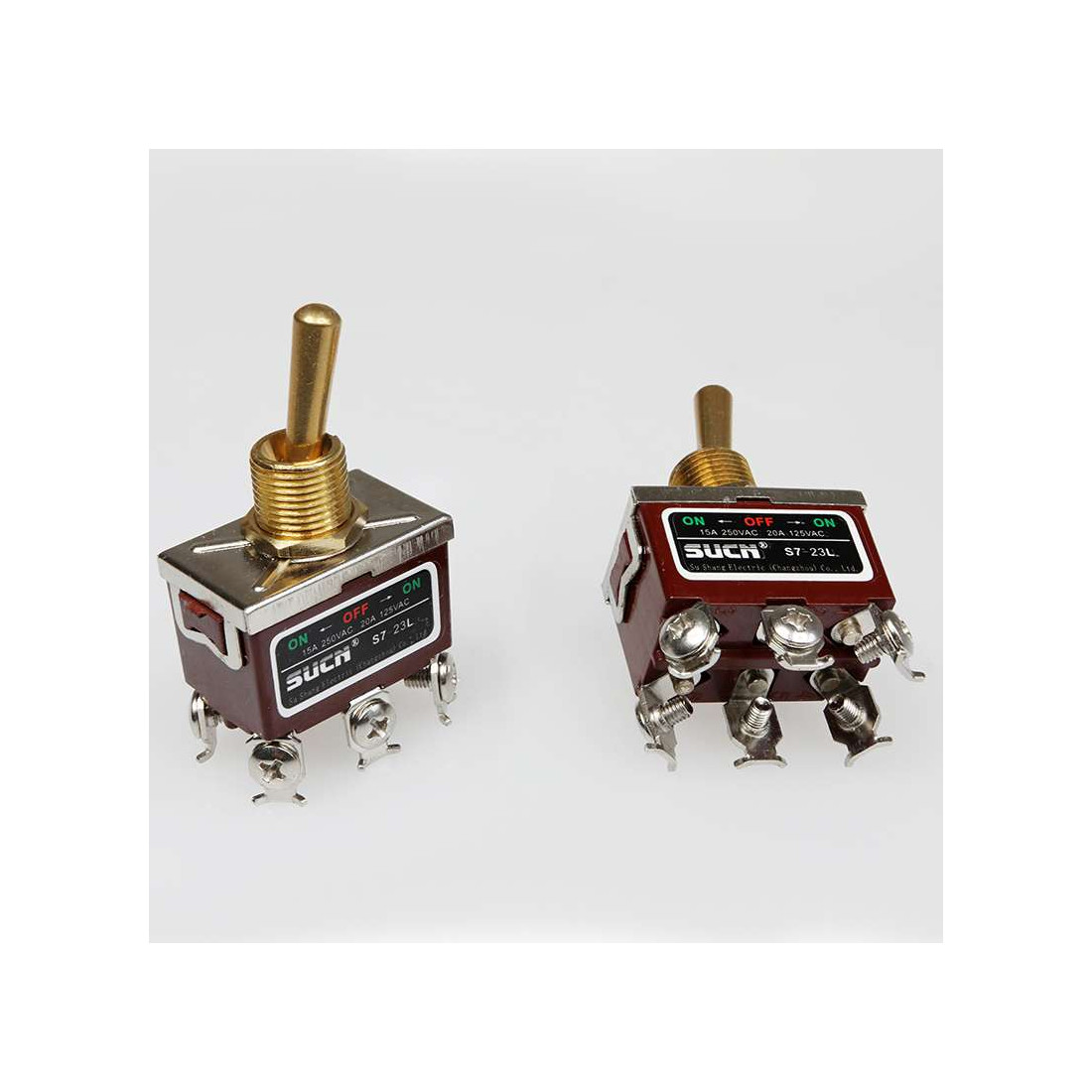

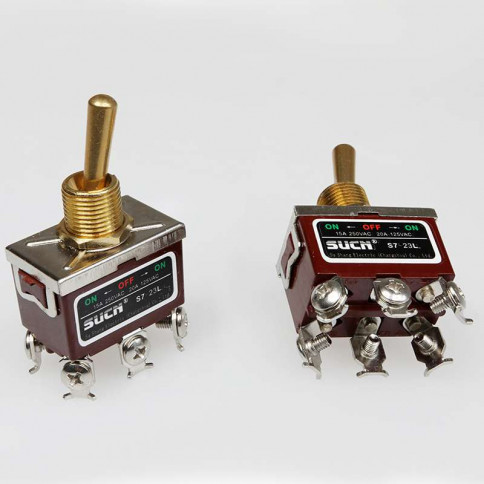

Dual circuit toggle or rocker switch with six screw terminals rated at 15 Amps at 250 Volts AC - three position On Off On switch operation.
This toggle switch is suitable for a variety of applications for cars and boats, lamps, etc.
Product description :
Connection: six screw terminal connectors
Switch function: On-Off-On
Plug 15 amp - 5 volts to 250 volts
Power: 15A at 250 volts AC
Operating temperature : -25 to 85°C
Number of cycles: 20000
Mounting diameter: 12mm (M12 threaded head, 1mm pitch)
Block dimensions: 30mm x 19mm height without lever 28mm
Sold individually
