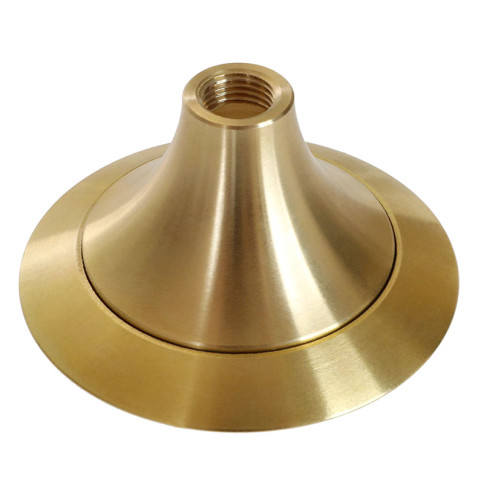

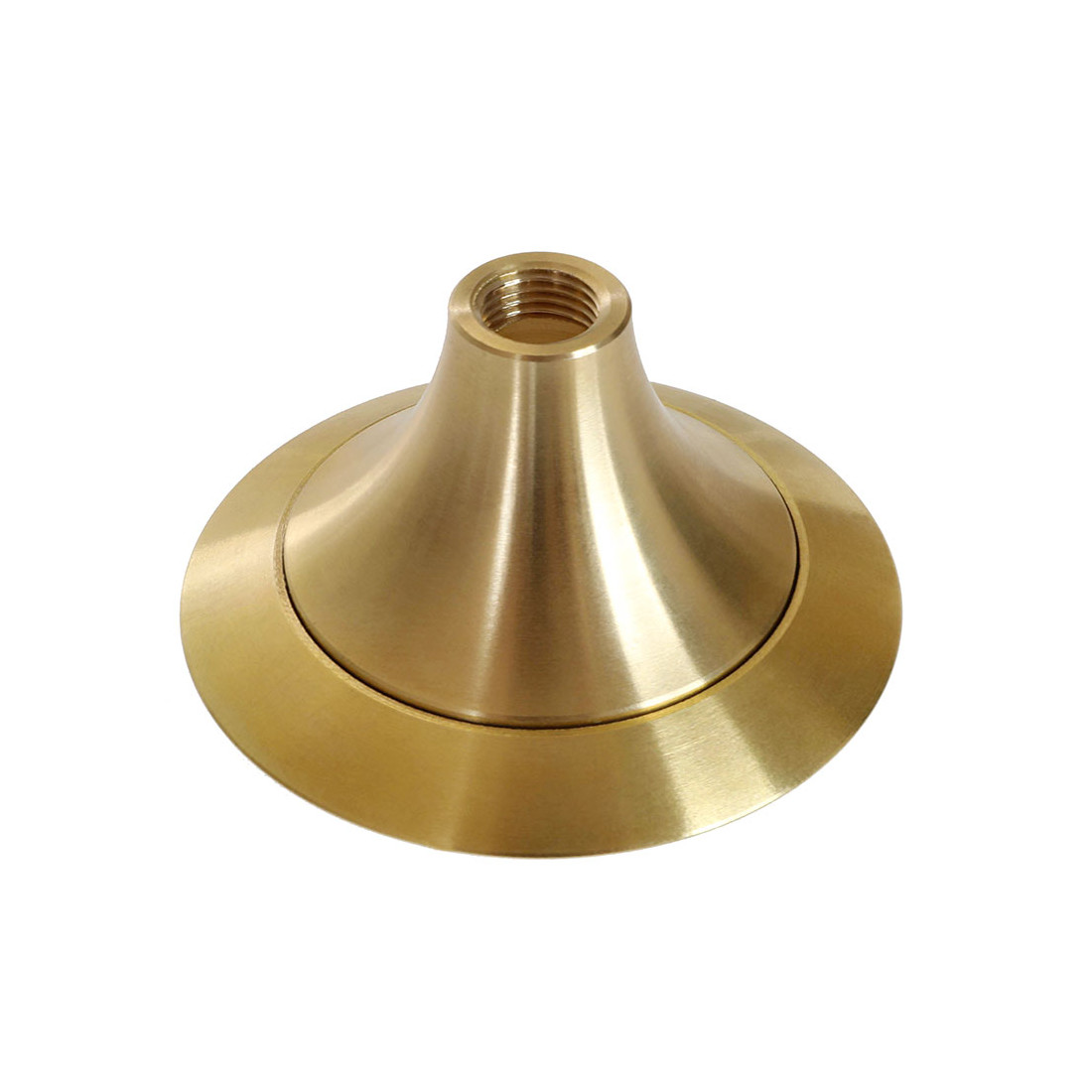

Brass teardrop rose, an essential fixing kit for suspended luminaires with a hole diameter of between 42mm (for the passage of the three screws) and 52mm (maximum diameter for covering the upper brass ring).
'
A solid brass rosette ideal for creating a trendy modern or older-style hanging light.
Features:
For hole diameter 42 to 52mm
Material: natural brass and aluminium for the flange
Thread: three times M3
Dimensions: external diameter 60 mm, height 32 mm
Central thread: M10 in 1mm increments
Weight: 120 g
Kit sold individually without screws
Maximum load: 8 kg
This kit includes a two-part brass rosette and an aluminium split flange with 3 M3 holes tapped at 120 degrees.
Please note that the screws are not supplied. You will need to choose the length of your screws according to the thickness of your luminaire.
(Screws are available at the bottom of the product data sheet).
The maximum recommendedload for this product is strictly dependent on the system we offer, excluding any consideration for additional fixing accessories you may use.
This load limit is directly related to the strength of the three screws used to secure the whole kit.
It is important to note that the load capacity of the fixing kit is in no way influenced by the choice of cable suspension system or any other fixing mechanism.
