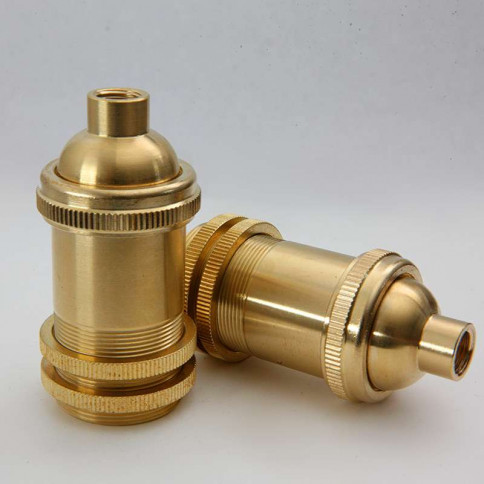

This Avicenne E14 screw lampholder is machined from solid brass and fits onto M10 threaded hollow rods and cable ties.
Its natural brass finish makes it ideal for Edison-style incandescent or LED filament lamps. The polyamide E14 lamp holder is supplied with this brass lampholder.
Features:
Socket for E14 lamp
Self-extinguishing polyamide base with phase and neutral terminals
Material: brass
Body diameter: 28.3 mm
Height: 70 mm
Shade passage diameter : > to 29mm
Grip-connect cable connection
Power: 1A - 250V
Max lamp power: 75 Watts
Weight: 140g
Lampholder sold individually without cable and without cable clamp but with lamp holder 14 in polyamide
Information on electrical safety.
In terms of electrical connectivity, the internal plastic lampholder will be installed with phase and neutral wiring, so earthing is not necessary. However, if this lampholder is installed with a metal lampholder cover or other metal structure, earthing of these metal parts will be necessary.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
