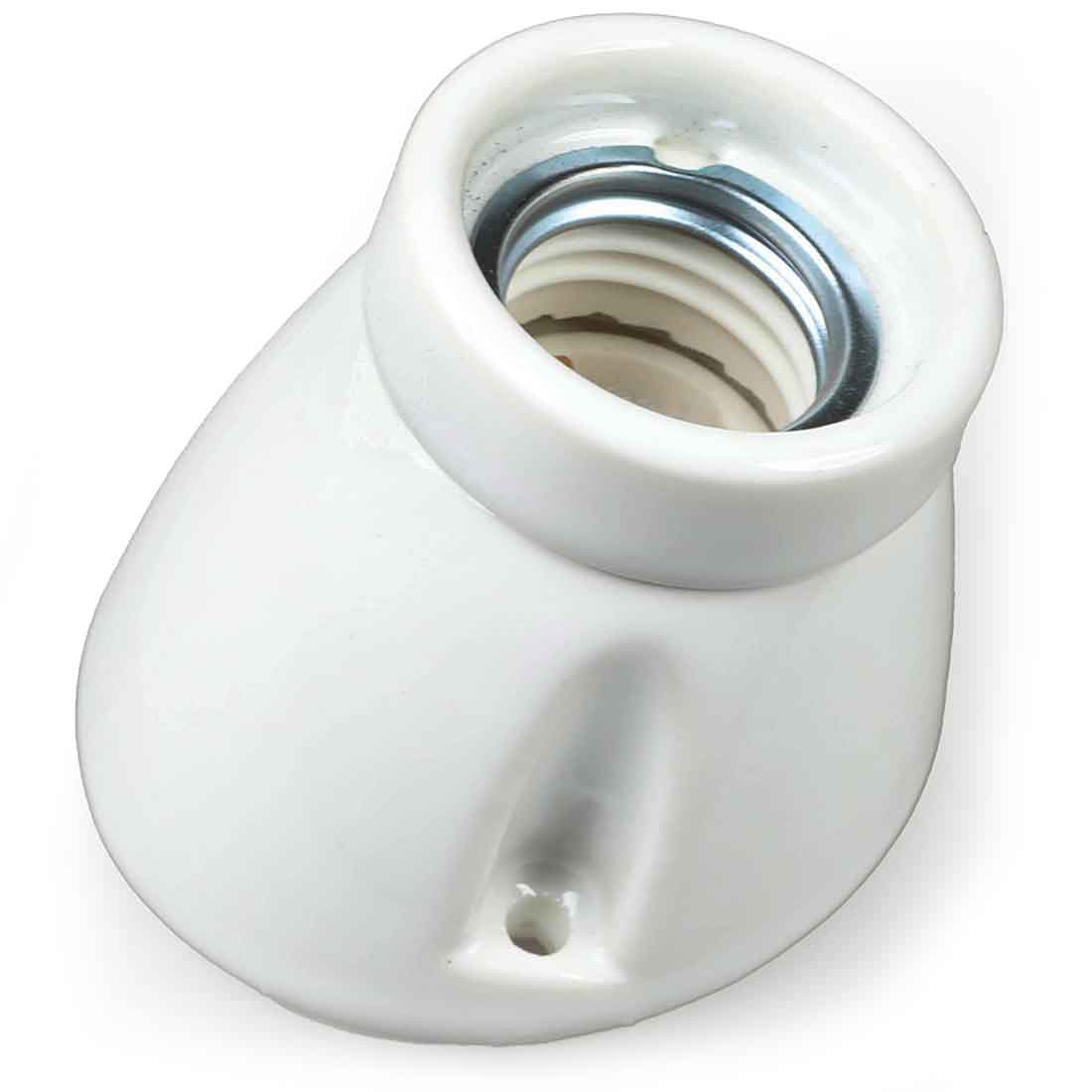

Discover our elegant white porcelain E27 lampholder with 30° angled base - perfect for adding a sophisticated touch to your lighting installations. The white colour is achieved by carefully applying enamel to the porcelain, giving a smooth, refined finish.
This socket is in E27 format, ideal for wall mounting, allowing you to install a compatible light source, such as a lamp in the same format. Bring a chic, contemporary feel to your space with this white porcelain lampholder.
Features:
Socket for E27 base lamp
Porcelain base with two-core screw terminal block for phase and neutral connection
Material: porcelain with enamel finish
Dimensions: base diameter 74mm, lampholder height 62mm
Wattage: 2A - 250V
Maximum bulb wattage: 150 Watts
Colour: white
Lampholder sold individually
Electrical safety information.
In terms of electrical connectivity, this porcelain lampholder will be installed with phase and neutral wiring; earthing is not necessary. However, if this lampholder is installed on a metal structure, earthing of the metal parts will be necessary.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locking systems are available in the 'You'll like them too' section at the bottom of the product sheet.
This socket has a specially designedsafety mechanism to prevent children from dismantling the electrical part of the socket.
To dismantle it safely, all you have to do is gently push a small metal catch, which is accessible from the side of the lamp once it has been removed.
