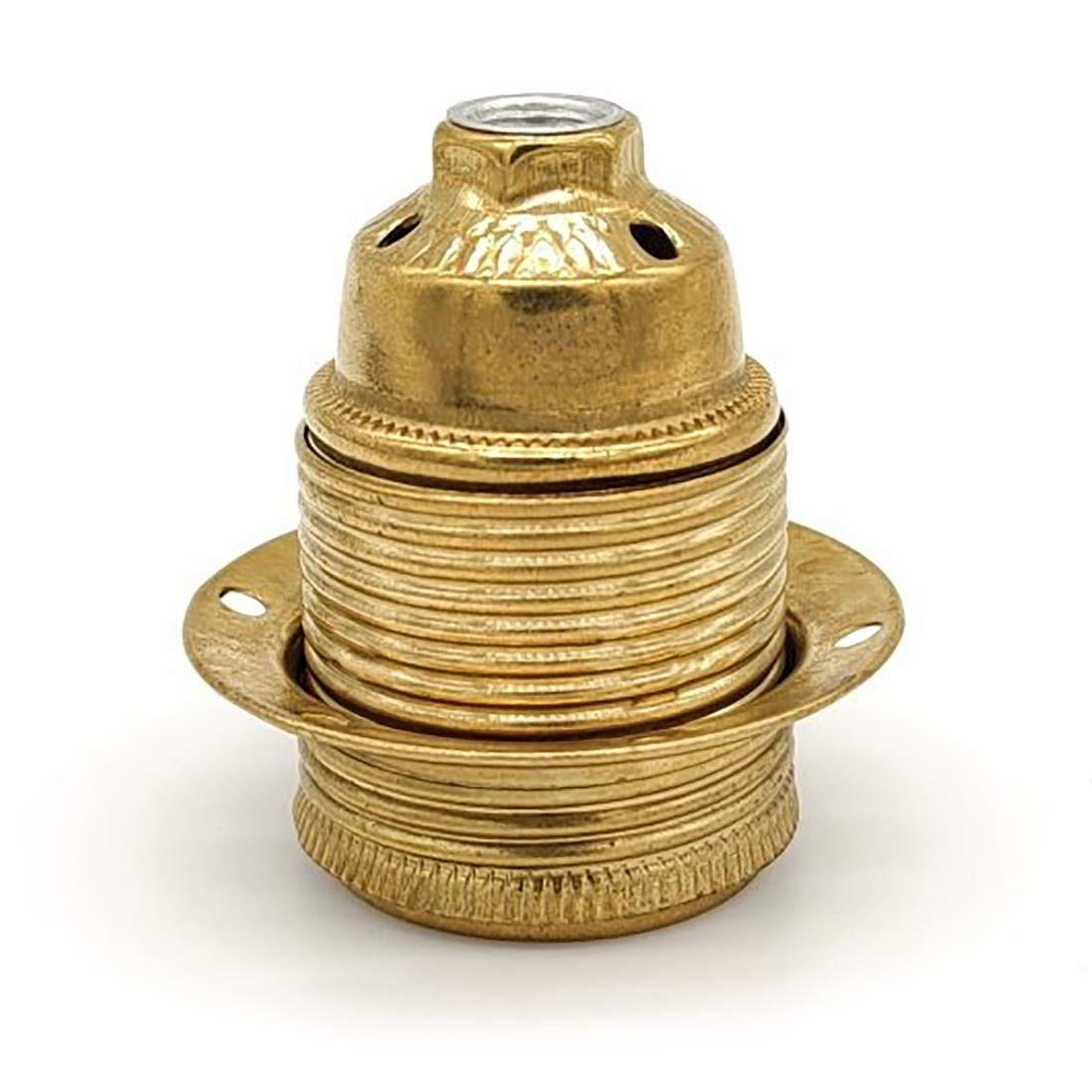

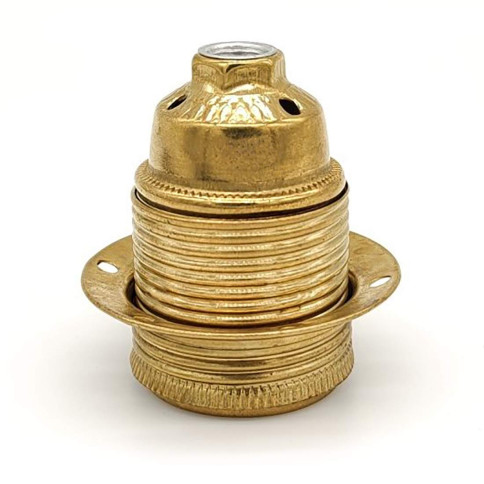

This Sérémat E27 screw lampholder in brass-coloured steel can be installed on hollow threaded rods and M10 threaded cable clamps or on a lampshade with a 40 mm diameter hole.
A steel construction for incandescent or low-energy lamps,
Features:
Socket for E27 lamp with M10 threaded sleeve
Screw lampholder for lampshade with 40mm diameter hole
Porcelain base with three-core 2p+T terminal block
Material: steel, brass-coloured steel finish
Dimensions: height of socket 60 mm
Cable connection by screws
Wattage: 2A - 250V
Maximum bulb power: 150 Watts
Colour: brass finish
Lampholder sold individually, with two locking rings for lampshade.
Electrical safety information.
In terms of electrical connectivity, this lampholder offers the versatility of being installed with wiring including phase, neutral and earth, allowing the lampholder to be installed, for example, on the ceiling.
However, for obvious aesthetic reasons, it is difficult to envisage using a large 230 volt 2P + earth plug or socket for floor-mounted lamp installations. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locking systems are available in the 'You'll like them too' section at the bottom of the product sheet.
This socket has a specially designedsafety mechanism to prevent children from dismantling the electrical part of the socket.
To dismantle it safely, all you have to do is gently push a small metal catch, which is accessible from the side of the lamp once it has been removed.
