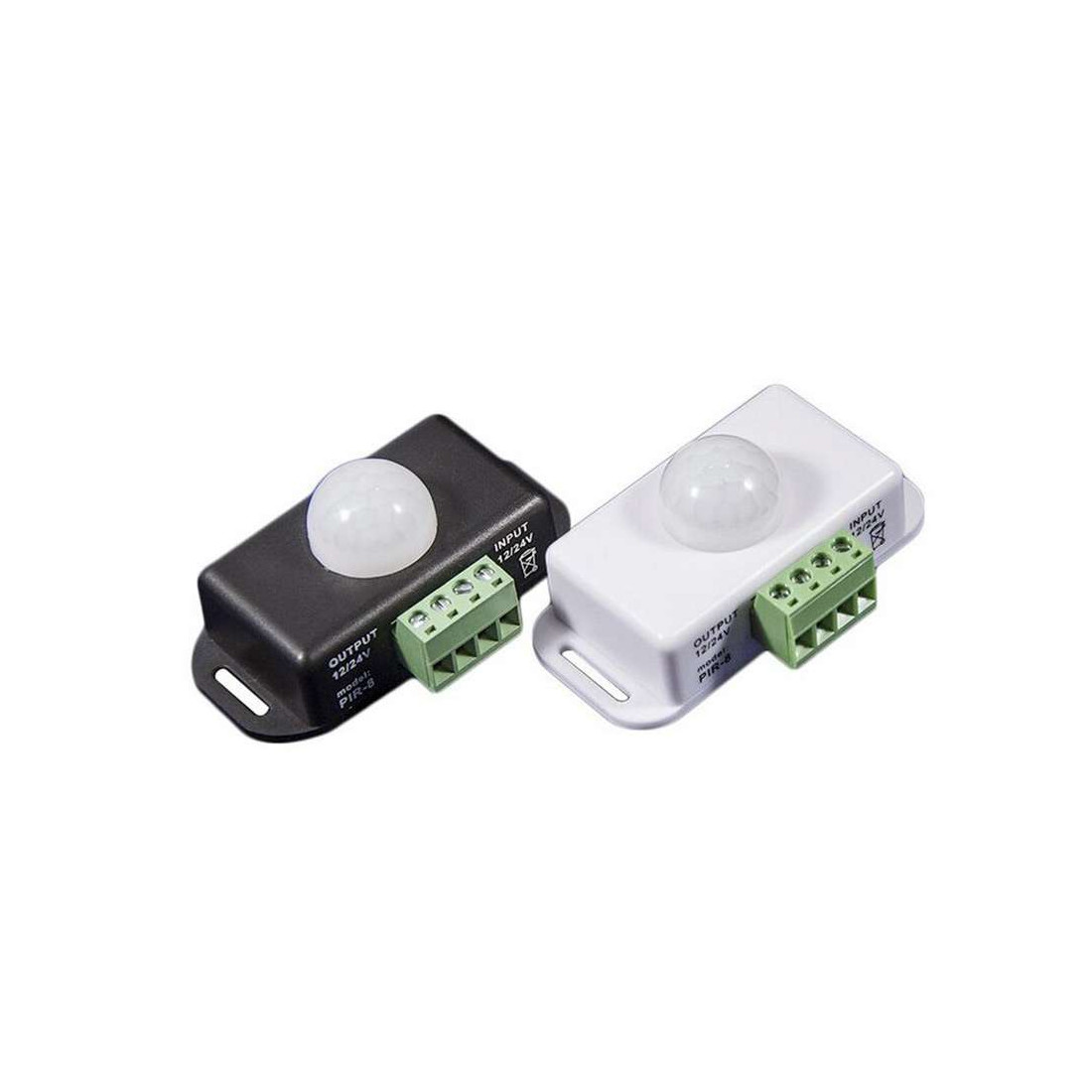

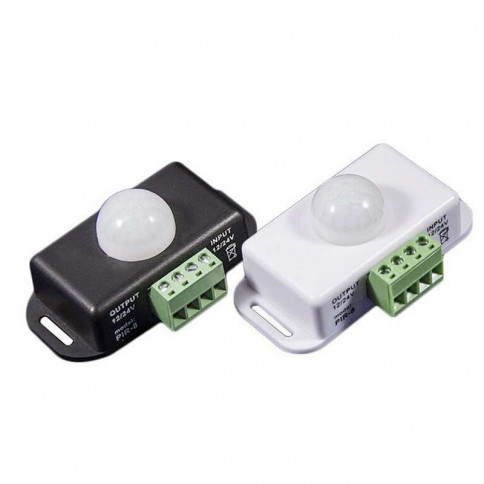

This motion detector has an infrared system. Compatible with 12V and 24V devices, maximum load 8A. The detector is designed for indoor use. Protection against overvoltage, undervoltage and overload.
Features:
Automatic on/off switch
Input voltage: 10.5 - 16 volts or 21 - 32 volts
Output voltage: 10.5 - 16 volts or 21 - 32 volts
Adjustable time delay: 1 to 10 min
Detection angle: horizontal 60° / vertical 60
Detection distance in free field: 8 m
Output current: 8 amps
Current consumption (idle): 2mA
Housing colour: black or white (depending on declination)
Dimensions: length 76, width 35, height 34mm
Weight: 30g
Warranty: 1 year
