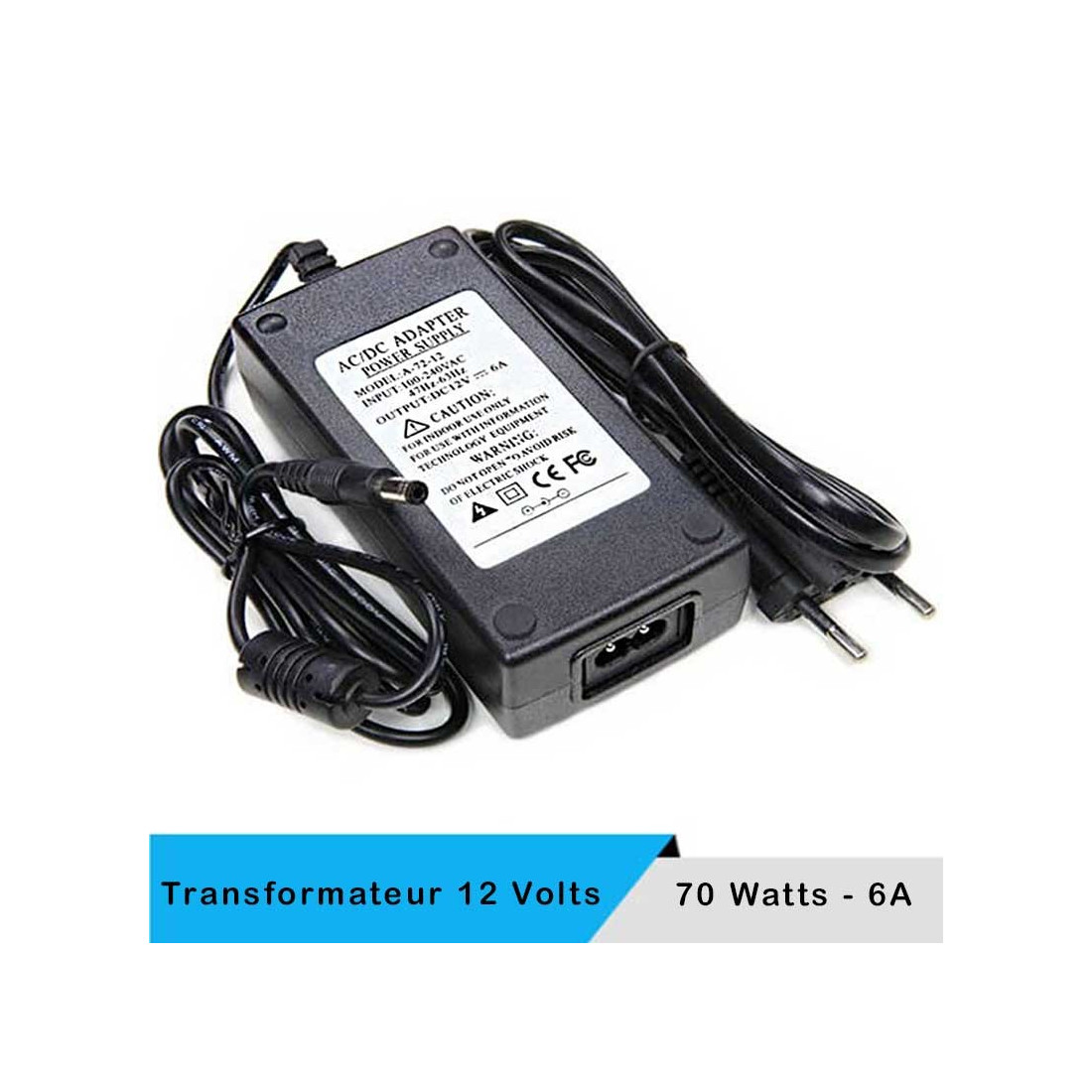

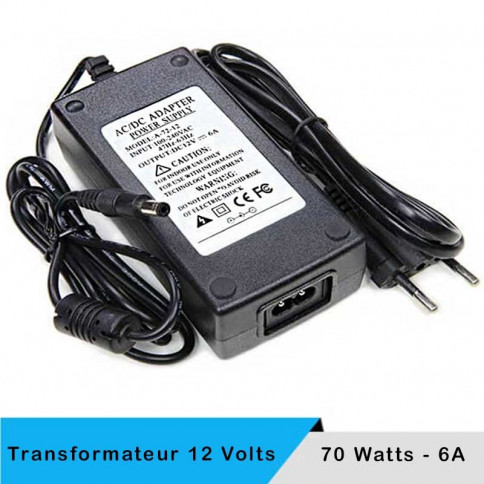

This 70 watt LED transformer for small sockets delivers a stabilised 12 Volt DC voltage.
A very low tolerance of ± 0.3 volts , guaranteeing faultless reliability for the LED source products you connect to this power supply.
Perfect flicker-free luminosity thanks to 12 V DC.
There are two standard jack connectors, both with the same external diameter, 5.5mm, only the internal pin changes from standard 2.1mm to standard 2.5mm.
All our LED transformers are sold with a standard 2.5mm internal diameter, the 2.1 version is only available on request.
This power supply is required for most LED bulbs, LED strips and all other products using 12-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
It operates over an input voltage range from 220 volts to 240 volts.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
Transformer 70 watts - 12 Volts ± 0.5volt
Primary current: 100 to 240 volts AC
Secondary current: 12 volts DC
Output amperage: 6A
Centre pin diameter : 2.5 mm
External pin diameter : 5.5 mm
Type of protection: IP30
Temperature range: -20 to +60°C.
Inside diameter: 2.5mm
External diameter: 5.5 mm
Dimensions: L 120 x W 50 x H 30 mm
Self-extinguishing black plastic case
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overtemperature.
Ambient temperature TA: -10 to + 40°C
Contact temperature TC: 80°c
Double insulation without earth connection.
Maximum usable power: 70 Watts
Safety certification: CE & ROHS.
Supplied with plug and 2.5 mm jack cable
