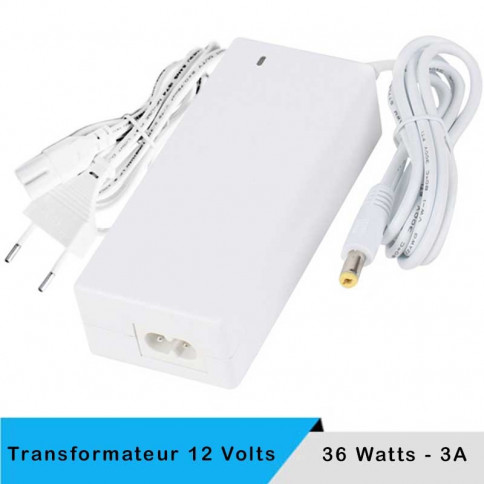

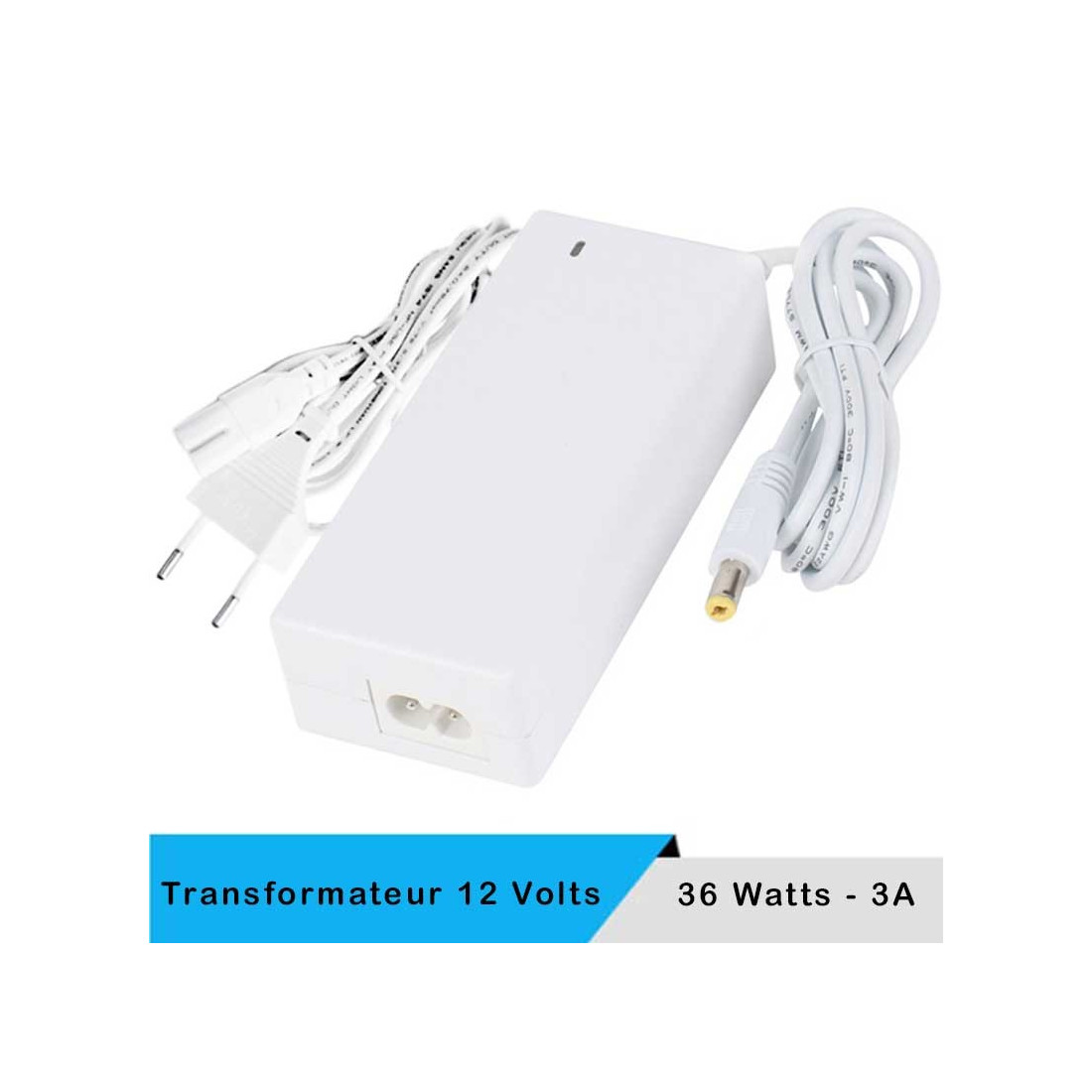

This 36 watt white LED jack transformer is 12 volt DC stabilised with a very low tolerance of ± 0.5 volt, guaranteeing faultless reliability for the LED source products you are going to connect to this power supply.
Its white case and cables make it more discreet, making it easier to integrate in conjunction with electronic equipment, lamps or luminaires.
Perfect flicker-free brightness thanks to 12 volt DC power.
This power supply is required for most LED bulbs, LED strips and all other products using 12-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 100 volts to 240 volts.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
36 watt - 12 volt transformer
Primary current: 100 to 240 volts AC
Secondary current: 12 volts DC
Output amperage: 3 A
Temperature range: -20 to +60°C.
Dimensions: L 116 x W 46 x H 30 mm
Self-extinguishing black plastic case
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overheating.
Ambient temperature TA: -10 to + 40°C
Contact temperature TC: 80°c
Double insulation without earth connection.
Maximum usable power: 36 Watts
Safety certification: CE & ROHS.
