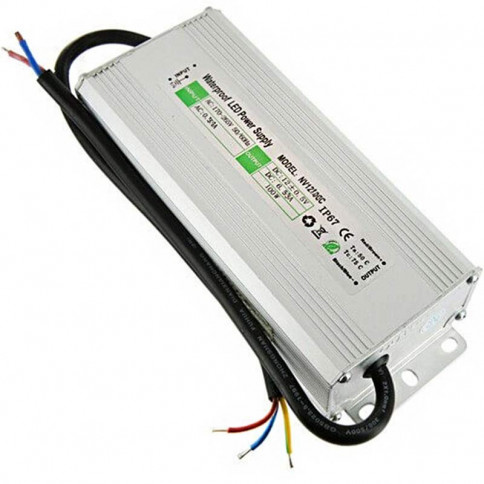

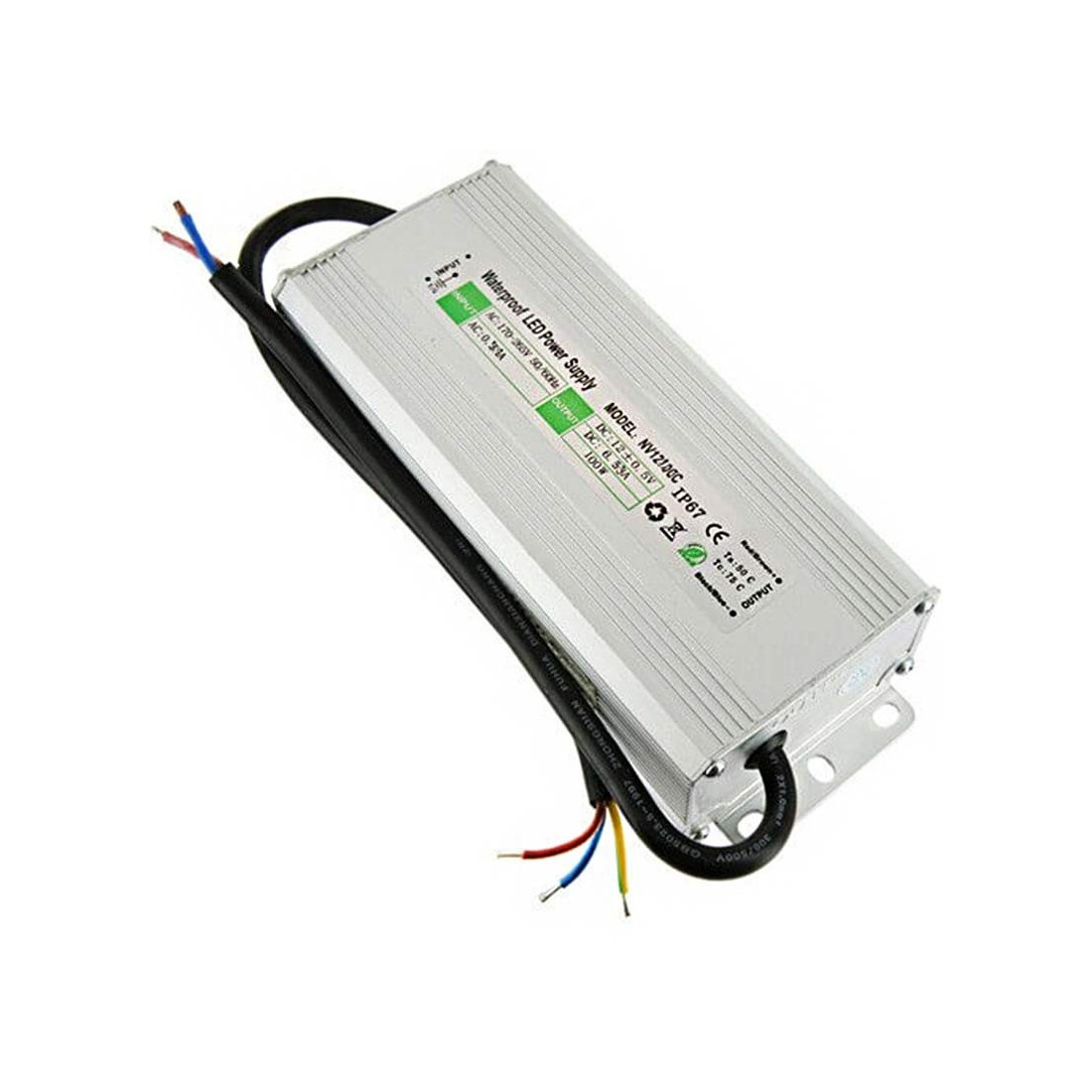

This 100 watt IP67 LED transformer has a single, stabilised 12 Volt DC output with a very low tolerance of ± 0.5 Volt, guaranteeing faultless reliability for the LED source products you connect to this power supply.
Perfect flicker-free luminosity thanks to 12 Volt DC.
This power supply is required for most LED bulbs, LED strips and all other products using 12-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 170 volts to 250 volts.
With connection cables at the ends of the case, one for the 230 volt mains input and another for the 12 volt DC output.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
Transformer 100 watts - 12 volts
Primary current: 170 to 250 volts AC
Secondary current: 12 volts DC ± 0.5volt
Amperage: 8.33 A
Type of protection: IP67
Temperature range: -20 to +60°C.
Dimensions: L 190 x W 70 x H 45 mm
Material: aluminium & resin
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overheating.
Ambient temperature TA: -10 to + 40°C
Contact temperature TC: 80°c
Double insulation without earth connection.
Maximum usable power: 100 Watts
Safety certification: CE & ROHS.
