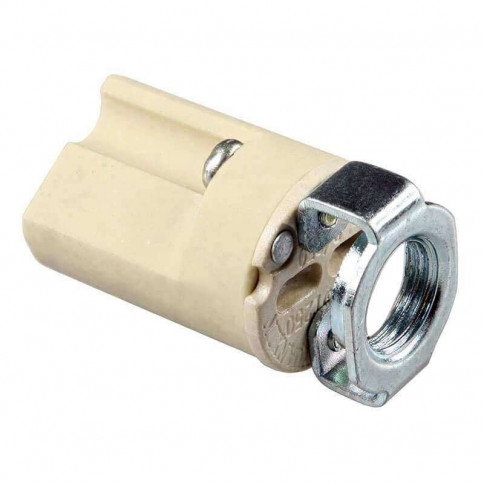

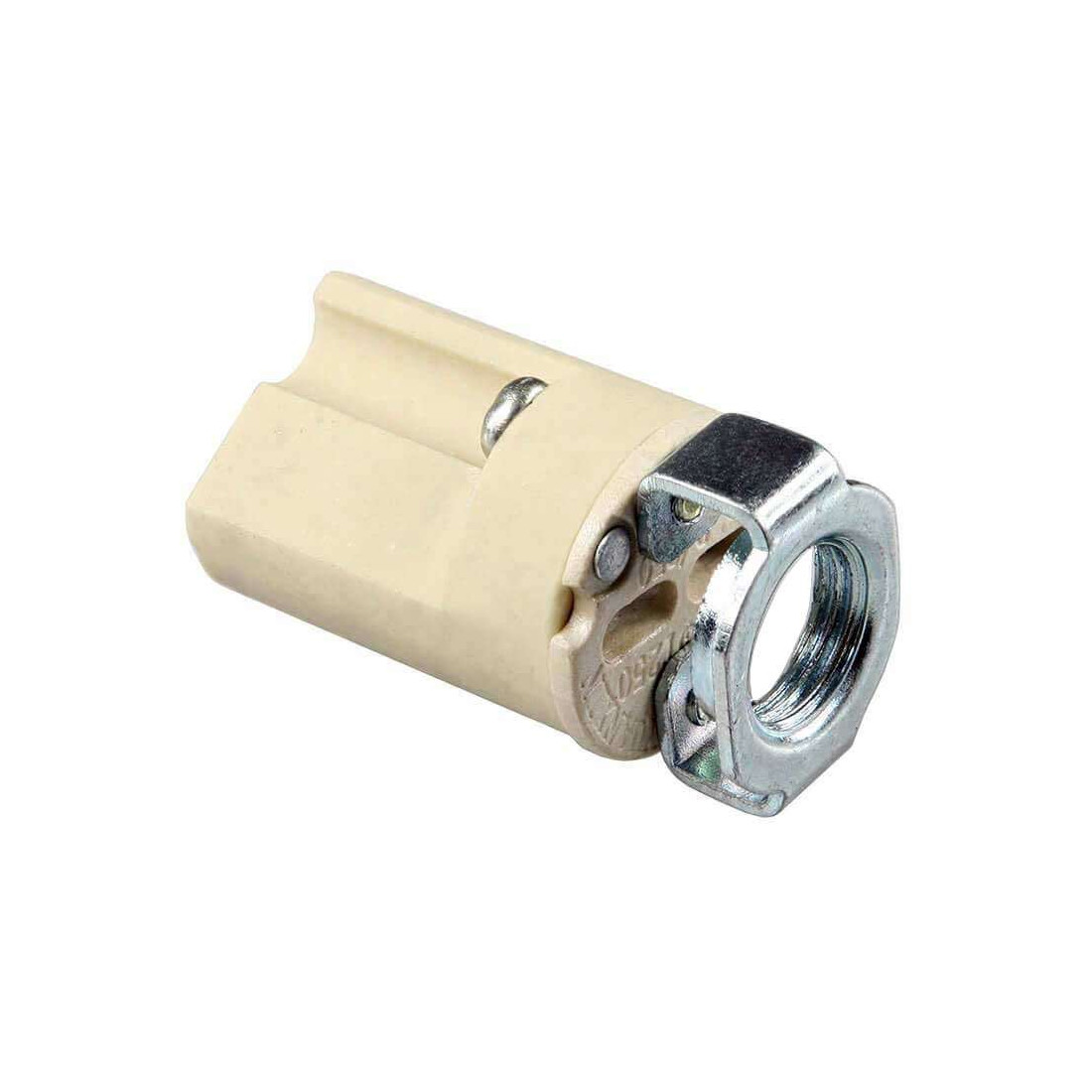

This ceramic base can be fitted to a luminaire fitted with an LED or halogen G9 bulb and is designed to be connected to a luminaire fitted with an M10 tube.
An Autogrip automatic fixing system allows the installation of tinned cables.
Product description:
G9 base lampholder with m10 threaded steel hoop
Wire connection: auto grip on tinned wire
For tinned multi-strand copper cables, cross-section 0.3 to 1.5 mm².
Maximum voltage: 250 volts
Maximum temperature: 250 °C
Power: maximum 100 watts
Safety assurance: CE & ROHS
Our products are guaranteed for one year
precautions for use:
Switch off the electricity supply before carrying out any work on the installation.
Electrical safety information.
In terms of electrical connectivity, this porcelain lampholder will be installed with phase and neutral wiring. Earthing is possible with an earth cable on a 10 mm diameter round lug placed under the jumper where it is fixed or with a 4 mm screw using the small screw fixings on the jumper, some pre-wired earth cables are available at the bottom of the product data sheet.
For obvious aesthetic reasons, it is difficult to envisage using a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
