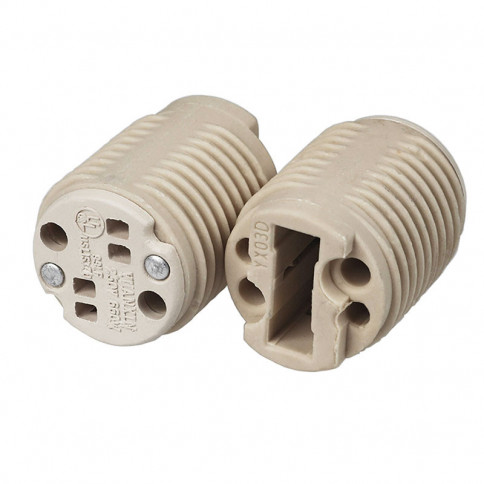

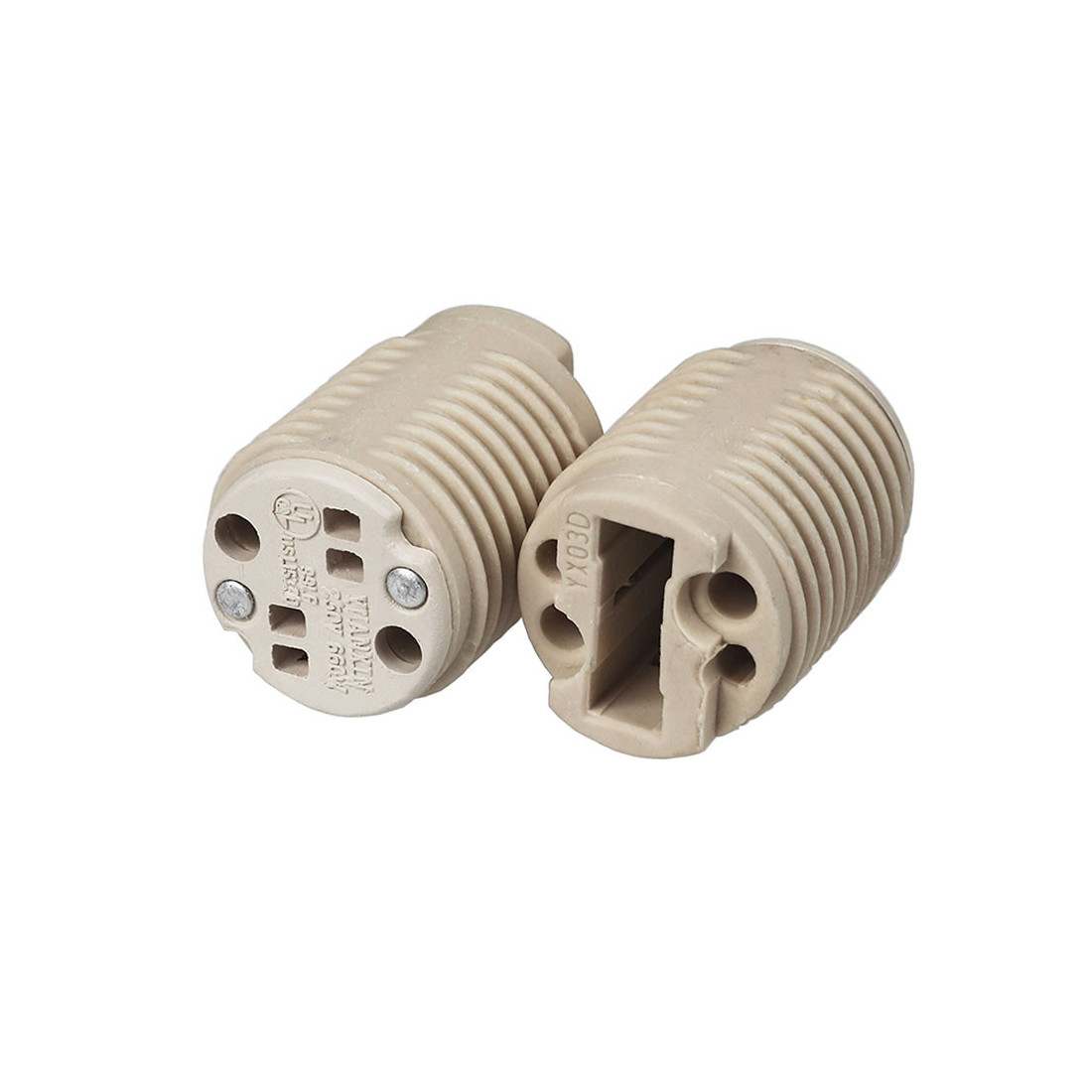

Porcelain base for G9 lamp, threaded M20.8 on the outside, with Grip-connect phase and neutral plus output to another socket, a G9 base for LED or halogen bulbs on tinned cables and threaded ring.
There are several ways of attaching this porcelain base: directly using the two through holes on a 13mm centre distance, which will allow you to fit an M10 threaded bridge.
or with the use of a retaining spring on a threaded socket for a G9 base, allowing you to fit glassware or a light fitting.
Or with the optional rings available at the bottom of the product data sheet on the external thread of the socket.
A self-grip four-cable fixing system allows installation of tinned cables with input and output for parallel mounting.
Product description :
Socket with threaded G9 base
Dimensions: diameter 20.8mm, height 27mm
Maximum voltage: 250 volts
Maximum temperature: 250 °C
Power: maximum 100 Watts
Safety assurance: CE & ROHS
Our products are guaranteed for one year
precautions for use:
Switch off the electricity supply before carrying out any work on the installation.
