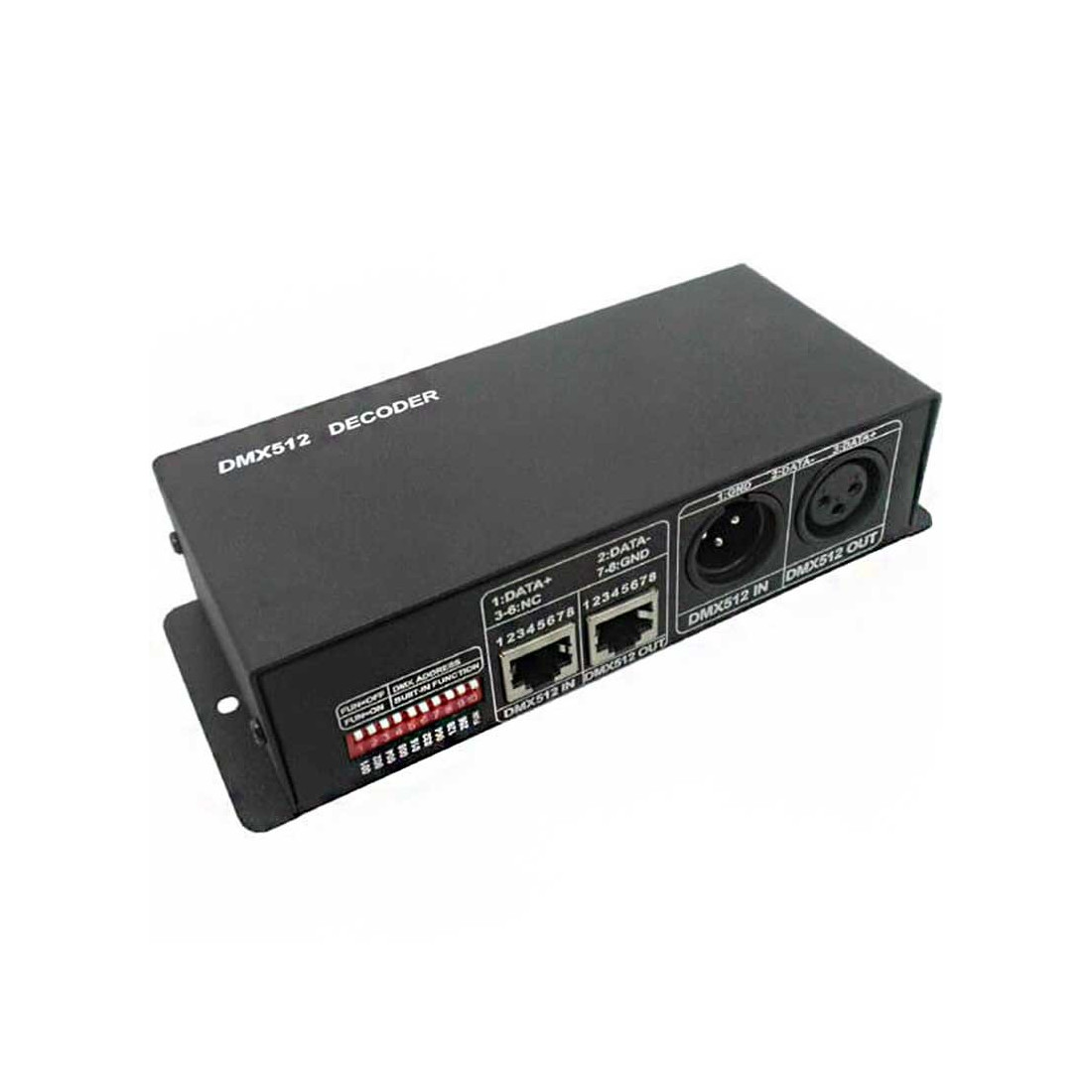

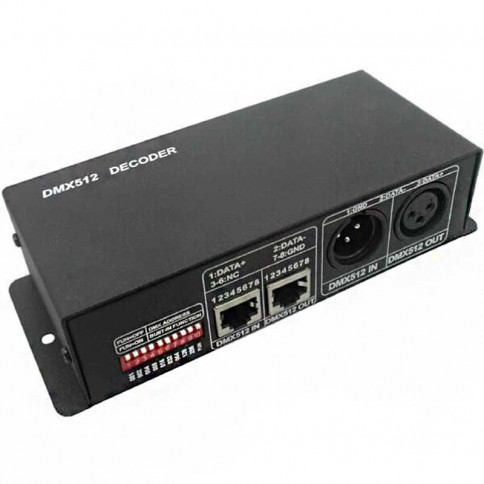

This controller is 100% compatible with your DMX console, specially designed for programming your LED lighting. This controller is compatible with all LED ribbon strips and LED modules.
How to use :
1- Connect your DMX console to the controller via the XLR socket
2- Connect your LED strip to the removable terminal block provided for this purpose
3- Connect the 12 or 24 volt power supply (depending on your LED strip) to the terminal block (V+ V-).
The RJ45 bridge lets you connect your controller to a second DMX controller, allowing you to control a second LED lighting system from a single DMX console.
The 10 switches also allow you to manually manage several lighting effects (without a DMX console) for automated lighting animation. If Switch 10 is ON, you can set the 9 functions available on your controller:
- Switch 1: red colour
- Switch 2: green
- Switch 3 : blue
- Switch 4 : yellow
- Switch 5 : purple
- Switch 6 : cyan
- Switch 7 : white
- Switch 8: the 7 colours change automatically at 8 different speeds
- Switch 9: the 7 colours change gradually at 8 different speeds
If switch 8 or 9 is activated, then switches 1 to 7 allow you to control the lighting speed of your automatic mode (8 or 9).
These functions allow you to use this controller without a DMX console with manual settings.
Connections :
* XLR input socket (DMX)
* XLR output socket (DMX)
* A terminal block with 6 RGB connectors + power supply
* 1 RJ45 DMX512 male input socket
* 1 RJ45 DMX512 female output socket
* 10 ON and OFF switches
Product description :
Strips must have common anodes.
Input voltage: 12 volts DC or 24 volts DC
Output voltage: 12 volts DC or 24 volts DC
Power at 12 volts: 72 watts
Power at 24 volts: 144 watts
Output: 3 channels
Output current: less than 4 amps per channel
Power consumption: less than 1 watt
Case dimensions: length 164 mm, width 65 mm, thickness 40 mm
Safety standards: CE and ROHS
All our products are guaranteed for 1 year
