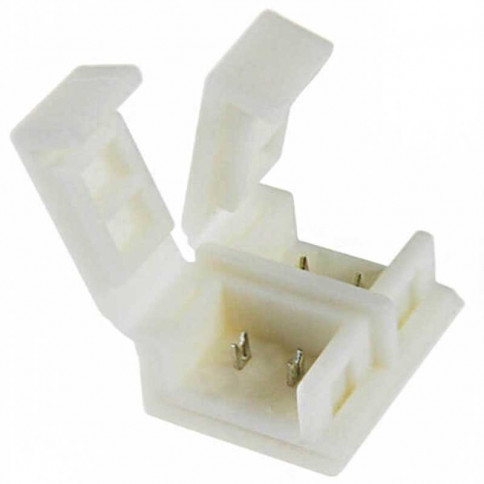

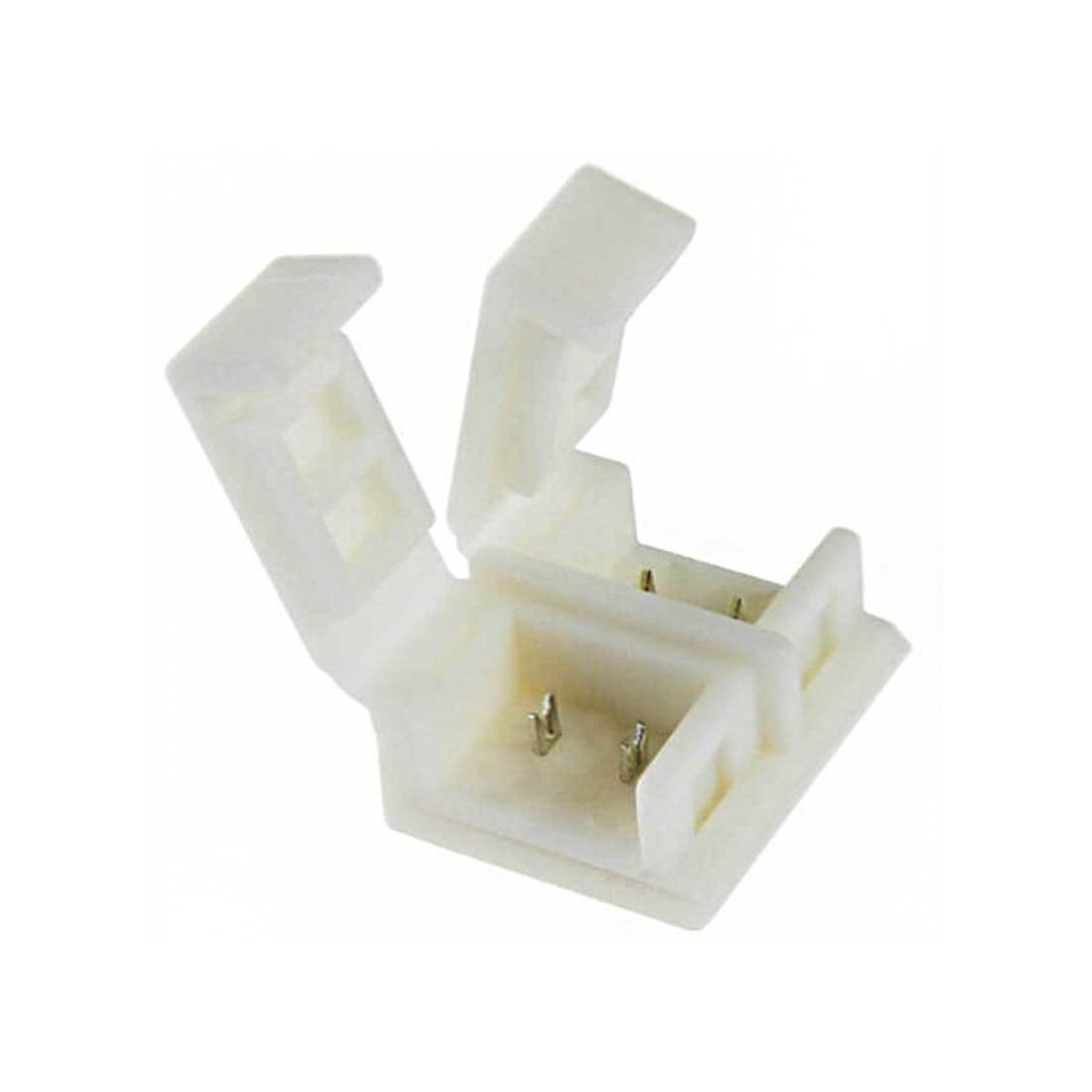

This connection box has been specially developed for rapid installation of Strip LEDs with IP 65 protection,
Simply press the top clevis and the small hooks will perforate the silicone layer and make the electrical connection between the tracks.
With this box you can connect two lengths of LED strip together to make a longer strip or connect several offcuts of LED strip to reuse them.
Clips-connect solderless connection box for 8 mm wide LED strip, a 2-track circuit board with 3.7 to 4.5 mm centres.
It is compatible for LED strips without IP20 sealing or IP65 sealing with a silicone protection that will have to be removed on the end.
Product description :
Clips-Grip connect straight connector
Connector dimensions: Length 15.3 mm, Width 14.5 mm, Thickness 8.3 mm
Circuit board: 2 tracks
Connector pin spacing: 3.7 to 4.5 mm
