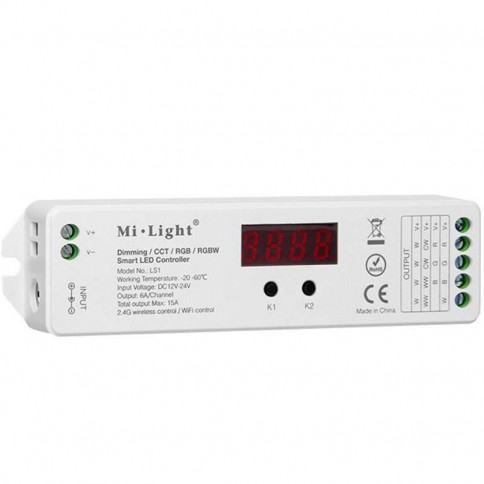

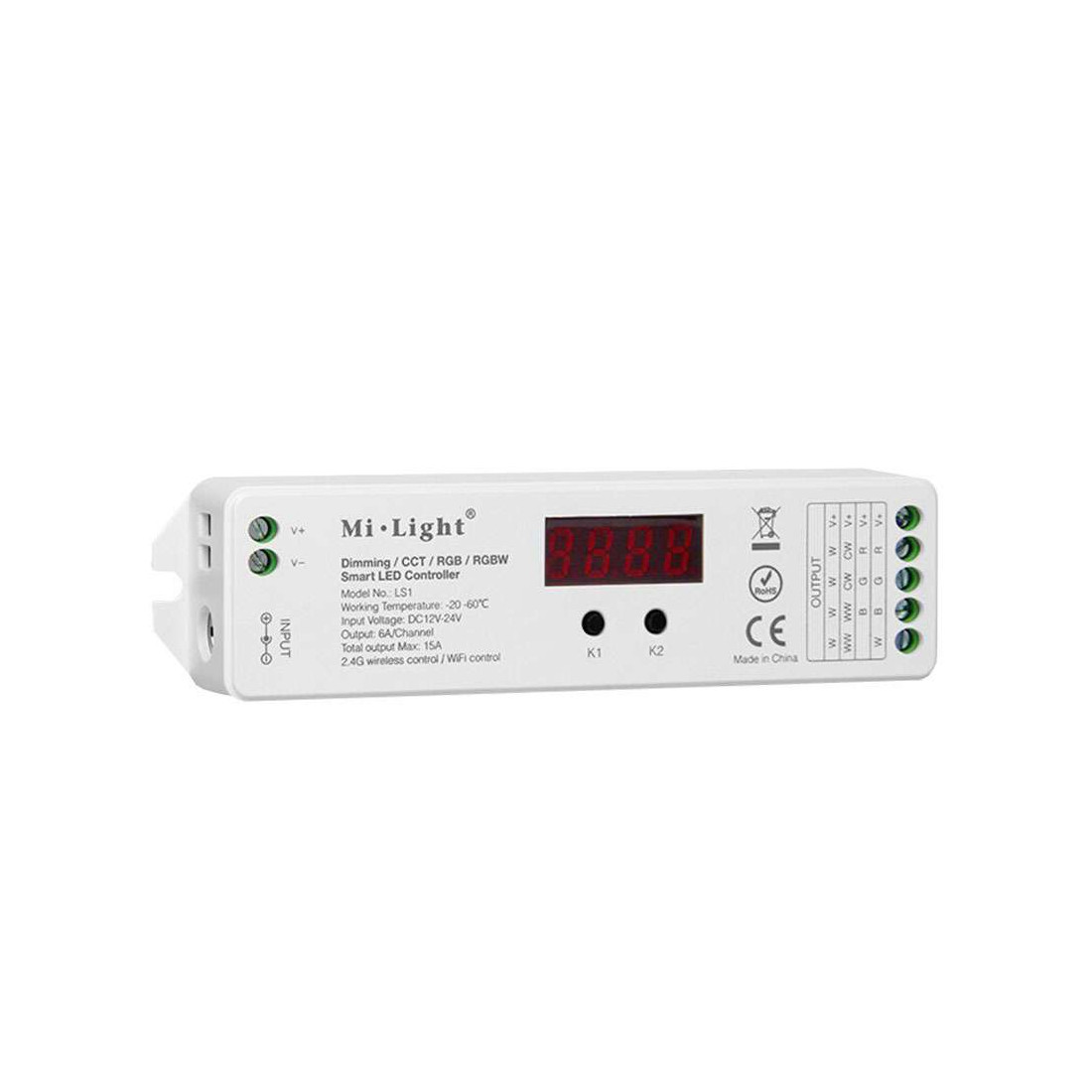

Multi-purpose wireless Mi-light LS1 LED 2.4G controller for luminaire, colour LED ribbon - RGB - RGB+W - CCT, for lighting management
This controller can capture the information signal from a single controller and reproduce the signal for all controllers in the vicinity
increasing the control range of the installation (the distance between receivers cannot exceed 30m).
Product description :
Controller sold without the Mi-Light FUT090 remote control
Application: Dimming, Monochrome, CCT, RGB, RGB + W, RGB + CCT
Receiver input/output voltage 12V DC or 24V DC
Maximum output power 15A
Number of receiver outputs: 5 outputs - common anode
Radio control method
Signal range: 30 metres in open space (signal can be extended by retransmitting the signal)
Control frequency 2.4 GHz
Operating temperature : -20 - 60
Colour white
IP20 protection rating
Dimensions: length 138mm x width 35mm x height 23mm
RoHS, CE certified
2-year warranty
Here is the list of Mi-Light products that work with the LS1 receiver
- Mi-Light FUT090 2.4GHz remote control (this controller is sold without the remote control)
- IBOX1 WIFI controller for phone or tablet RF 2.4G system
- IBOX2 Mi-Light RF 2.4G system
