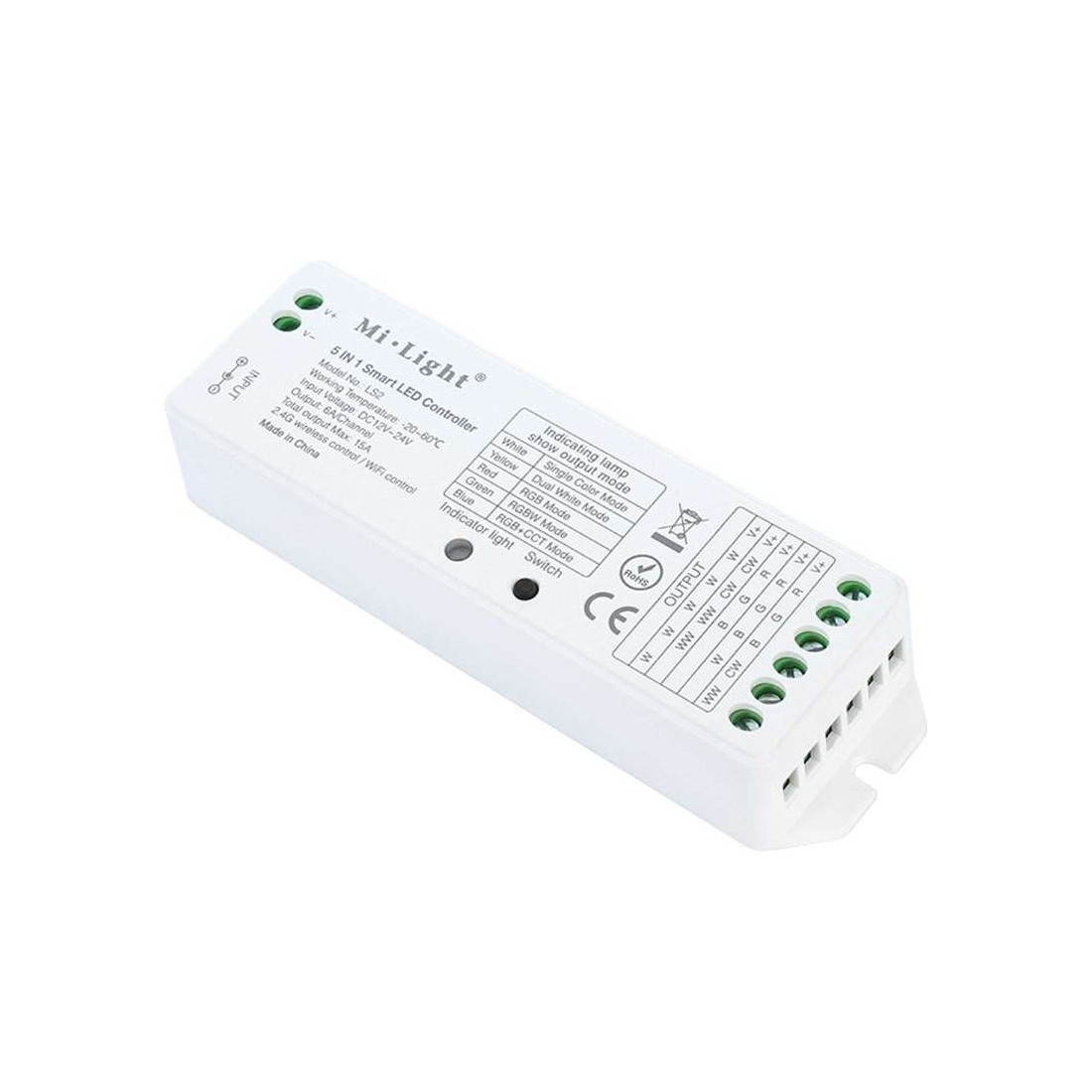

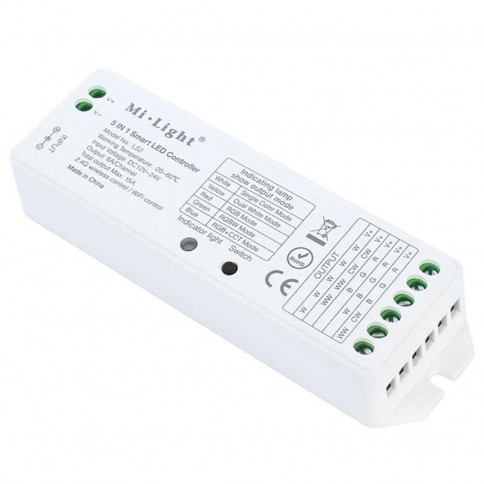

Multi-purpose wireless Mi-light LS2 LED 2.4G controller for luminaire, mono chrome LED ribbon - RGB - RGB+W - CCT, for lighting management.
This controller is able to capture the information signal from a single controller and reproduce the signal for all controllers in the vicinity
thus increasing the control range of the installation (the distance between receivers cannot exceed 30m).
Product description :
Controller sold without remote control
Application: Dimming, Monochrome, CCT, RGB, RGB + W, RGB + CCT
Receiver input/output voltage 12V DC or 24V DC
Maximum output power 15A
Number of receiver outputs: 5 outputs - common anode
Radio control method
Signal range: 30 metres in open space (signal can be extended by retransmitting the signal)
Control frequency 2.4 GHz
Operating temperature : -20 - 60
Colour white
IP20 protection rating
Dimensions: length 138mm x width 35mm x height 23mm
RoHS, CE< certified
2-year warranty
