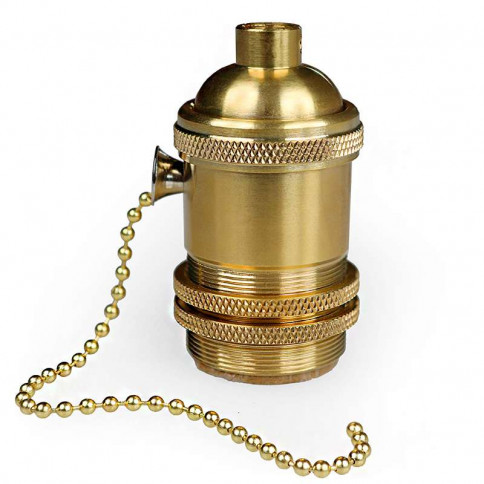

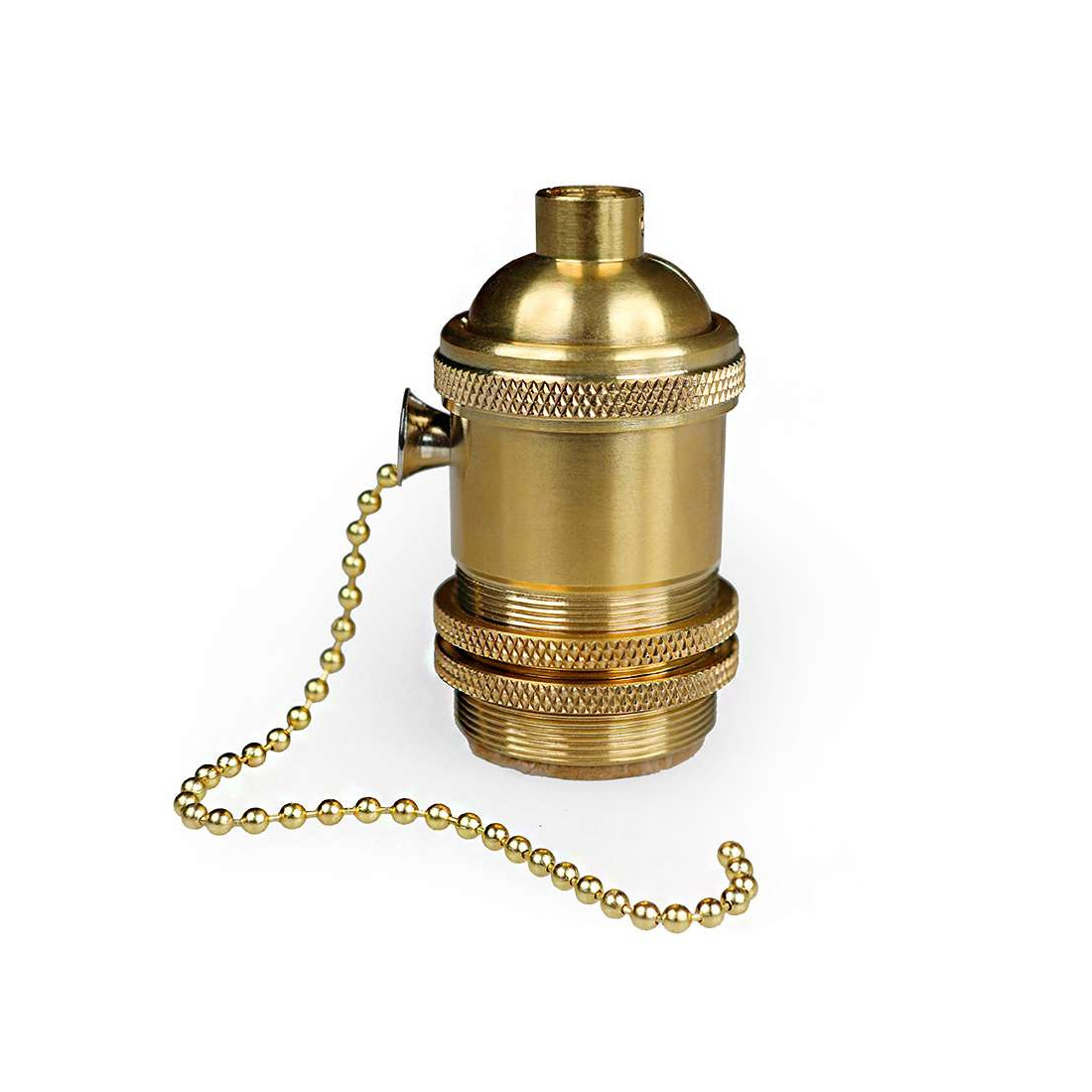

Bailly lampholder Old-fashioned functionality with this brass lampholder with on/offchain switch , Edison style for standard E27 lamps.
Discover our socket for E27 lamps, fitted with an elegant and practical chain. Simply pull the chain to light your lamp and enjoy the warm atmosphere.
A second pull turns the lamp off just as easily. This ingenious system, reminiscent of the mechanisms of yesteryear, will add an authentic retro touch to your home.
Ideal for those who appreciate the charm of objects from yesteryear, this socket combines functionality with vintage aesthetics.
This bushing fits onto hollow M10threaded rods or sleeves fitted with an M10 threaded cable gland.
The two rings allow a lampshade to be attached to the chain socket, pinch between the two nuts.
Features:
E27 socket with M10 thread
Material: brass
Electric cable connection by screw
Lampshade passage diameter: 32mm
Dimensions: thread diameter 32mm, height 71mm, ring diameter 38mm
Wattage: 2A - 250V Max bulb wattage: 300 Watts
Chainette length 15 cm ball diameter 3.2mm
Electrical safety information.
In terms of electrical connectivity, this socket will only be connected to phase and neutral. Earthing is possible with a 10mm diameter round lug earthing cable placed under the jumper where it is fixed, some pre-wired earthing cables are available at the bottom of the product data sheet.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only the phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
