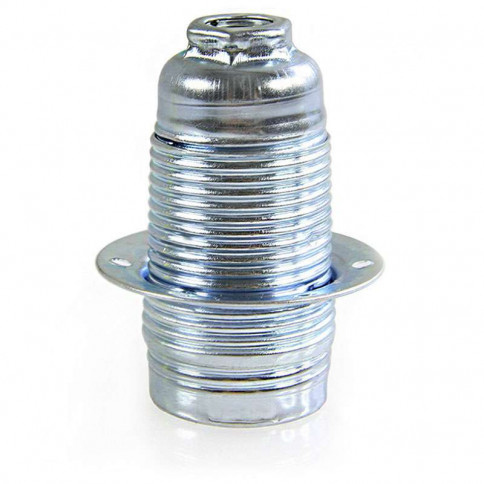

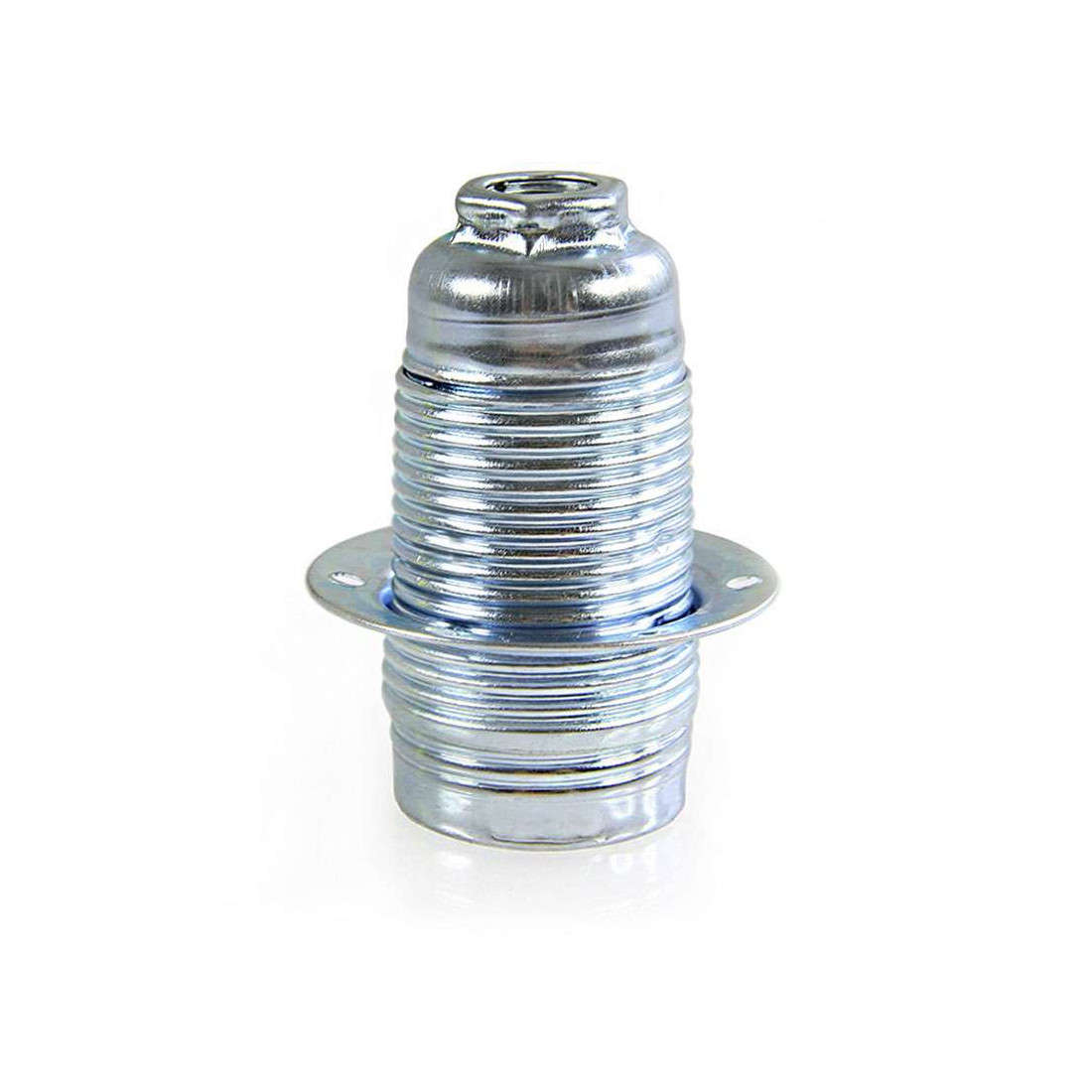

This Aspasia lamp holder with E14 base in steel, with a silver chrome finish, is designed to be installed on hollow threaded rods for free-standing mounting, or on an M10 threaded cable clamp for suspended mounting using an electric cable.
With an external diameter of 28 millimetres, it requires a shade with a passage greater than 28 millimetres.
Features:
E14 lampholder with M10 thread
Outside diameter: 28 mm
E14 porcelain base with two-core terminal block, phase neutral + earth connection
Material: steel, chrome finish
Dimensions: socket height 60 mm
Wattage: 2A - 250V
Maximum lamp wattage: 150 Watts
Colour: chrome silver
Lampholder sold individually with two locking rings shade
Electrical safety information.
In terms of electrical connectivity, this lampholder offers the versatility of being installed with wiring including phase, neutral and earth, allowing the lampholder to be installed, for example, on the ceiling.
However, for obvious aesthetic reasons, it is difficult to envisage using a large 230 volt 2P + earth plug or socket for floor-mounted lamp installations. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
