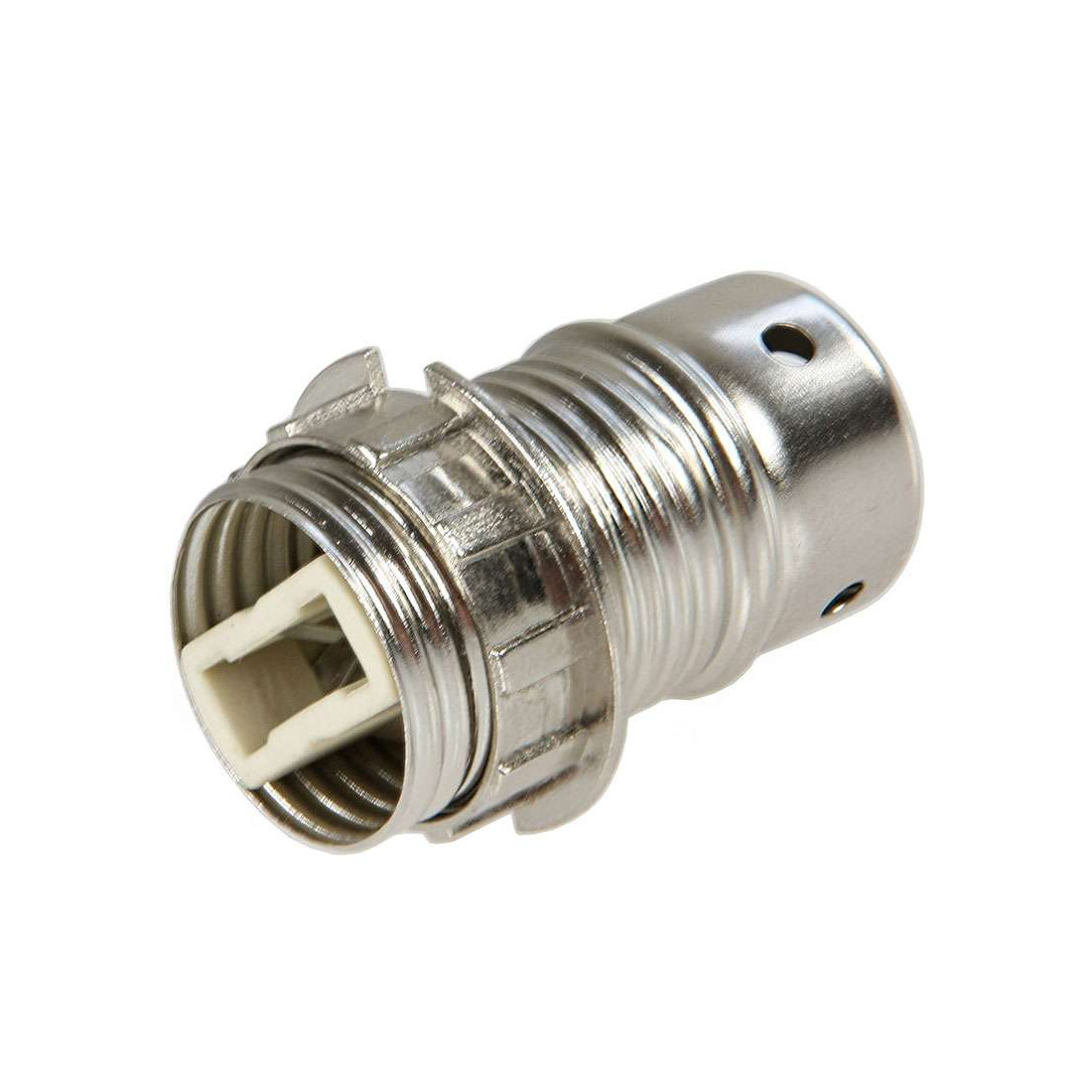

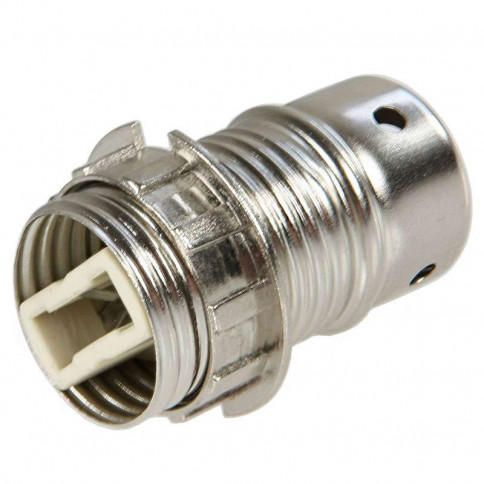

This chrome-plated steel lampholder can be fitted to hollow threaded rods and M10 threaded cable ties or to a lampshade with a 20 mm diameter hole. The lampholderis sold individually with its G9 porcelain base.
Made from steel for incandescent or low-energy lamps.
Features:
Lampholder with G9 base and M10 threaded sleeve
Screw lampholder for lampshade with 20 mm diameter hole
Porcelain base with M10 support
Material: steel, chrome finish
Dimensions: height of socket 38 mm
Fast connection of rigid or flexible tinned cables
Wattage: 2A - 250V
Max bulb wattage: 150 Watts
Colour: grey chrome
Lampholder sold individually with its G9 porcelain base
Electrical safety information.
In terms of electrical connectivity, this porcelain lampholder will be installed with phase and neutral wiring. Earthing is possible with an earth cable on a 10 mm diameter round lug placed under the jumper where it is fixed or with a 4 mm screw using the small screw fixings on the jumper, some pre-wired earth cables are available at the bottom of the product data sheet.
For obvious aesthetic reasons, it is difficult to envisage using a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only the phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
