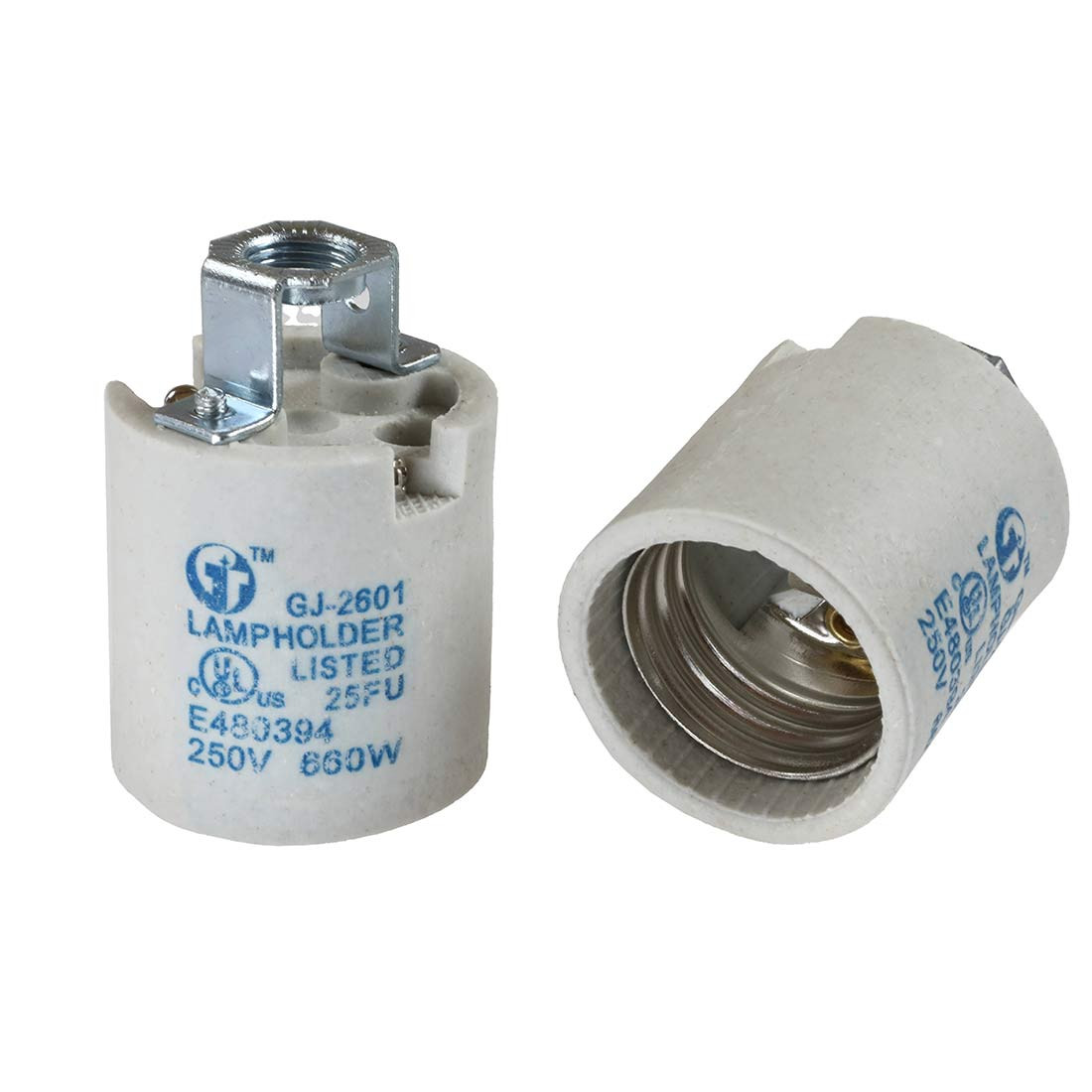

This E26 porcelain screw lampholder is specifically designed for the assembly of luminaires corresponding to the American Edison E26 format.
Please note that this version is not suitable for the European market, where the Edison E27 format is preferred.
Our E26 lampholder is specifically UL certified, guaranteeing compliance with the most stringent safety standards. We are able to provide the necessary certificates on request
Features:
Socket for E26 base lamp with M10 thread support
Porcelain base with two-core terminal block, phase and neutral
Material: porcelain
Dimensions: diameter 35 mm, height with support 52 mm
Cables connected by screws on terminal block
Thread diameter: M10, 1mm pitch
Wattage: 2A - 250V
Maximum bulb power: 660 Watts
Lampholder sold individually
Electrical safety information.
In terms of electrical connectivity, this porcelain lampholder will be installed with wiring including phase and neutral, earthing is possible, a small hole is available on the side of the jumper to connect a small earth cable on a round lug, some pre-wired earth cables are available at the bottom of the product data sheet.
For obvious aesthetic reasons, it is difficult to envisage using a large 230 volt 2P + earth plug or socket for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
