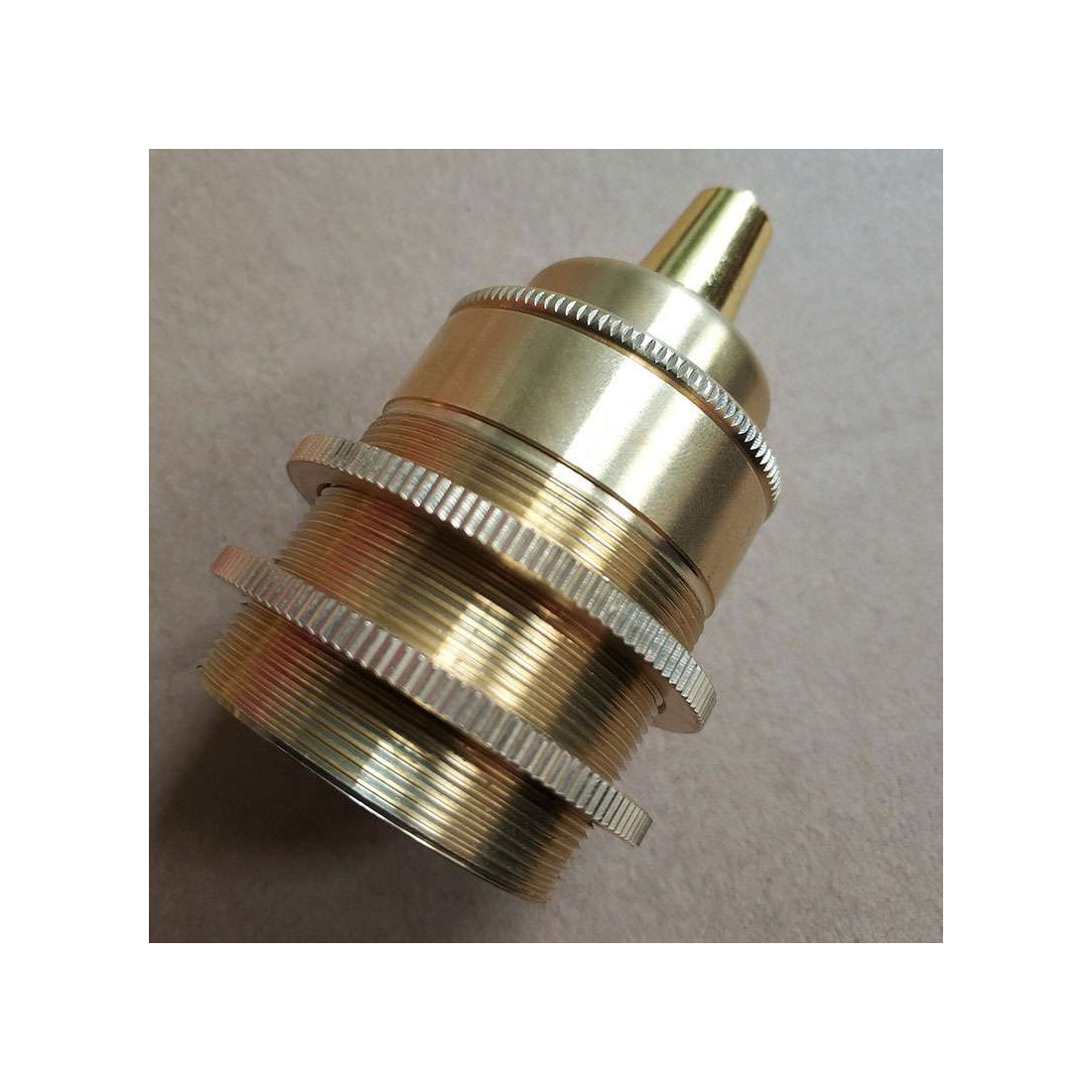

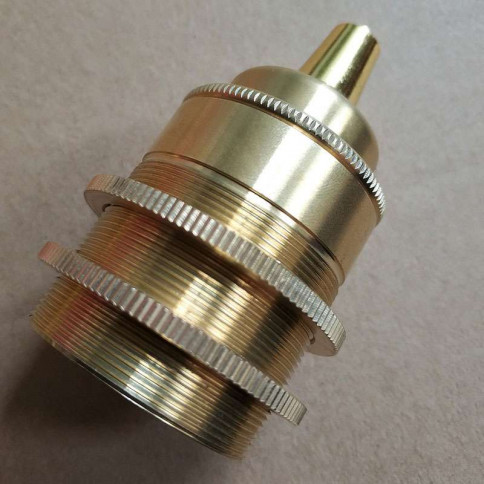

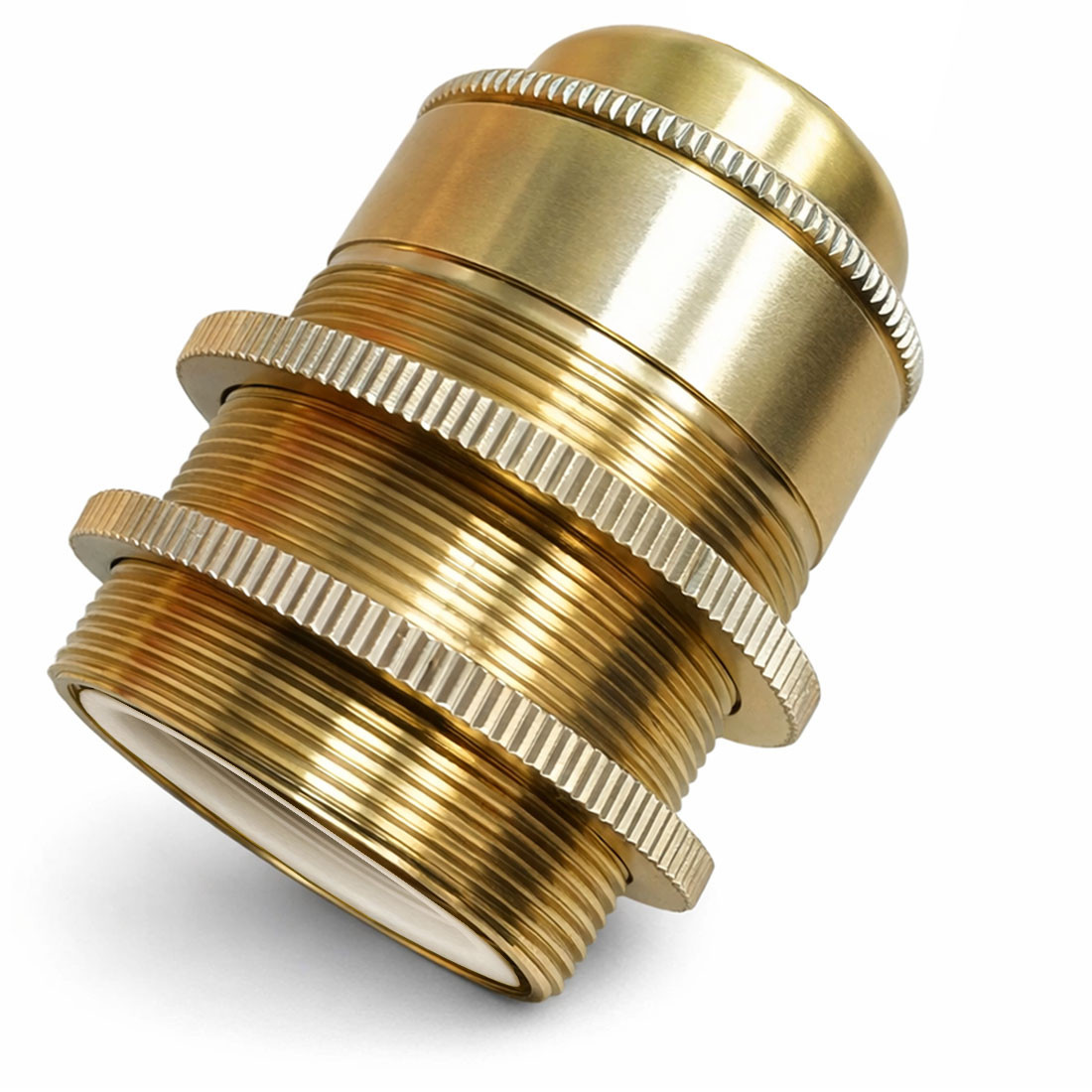

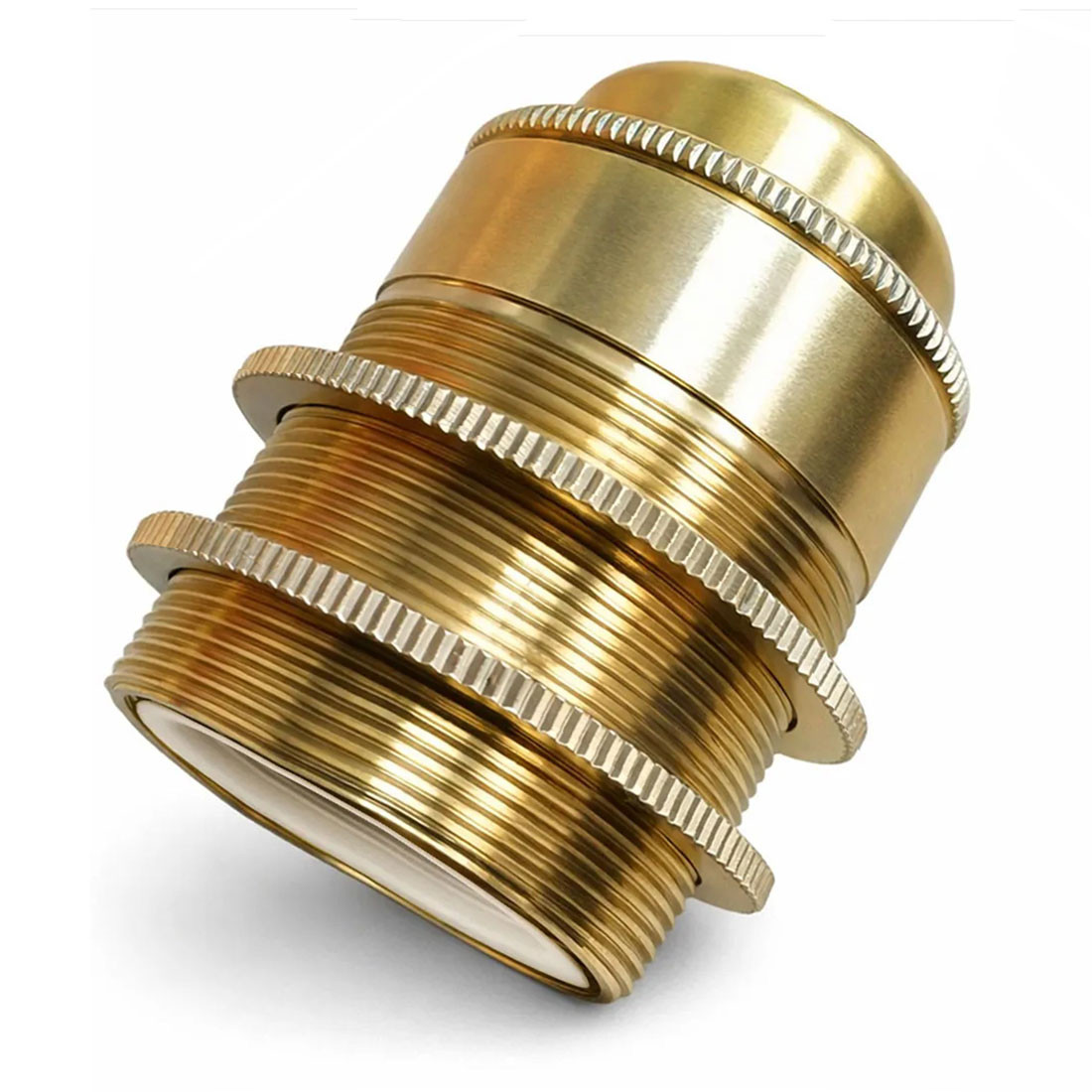

Lynch E27 screw lampholder in solid brass, for installation on hollow threaded rods or with a cable clamp for ceiling suspension.
This brass lampholder embodies the perfect union of tradition and modernity, adding a touch of sophistication to any lamp, whether suspended from the ceiling or placed on a table.
Features:
Socket for E27 lamp
Porcelain base with two-core terminal block, phase and neutral
Material: brass
Body diameter: 40 mm
Height: 57 mm without cable clamp
Shade passage diameter: 40mm
Power rating: 2A - 250V
Max bulb power: 150 Watts
Weight: 140gr
Lampholder sold individually without cable and without cable clamp
Electrical safety information.
In terms of electrical connectivity, this porcelain lampholder will be installed with wiring including phase and neutral, earthing is possible, a small hole is available on the side of the jumper to connect a small earth cable on a round lug, some pre-wired earth cables are available at the bottom of the product sheet.
For obvious aesthetic reasons, it is difficult to envisage using a large 230 volt 2P + earth plug or socket for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only the phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
