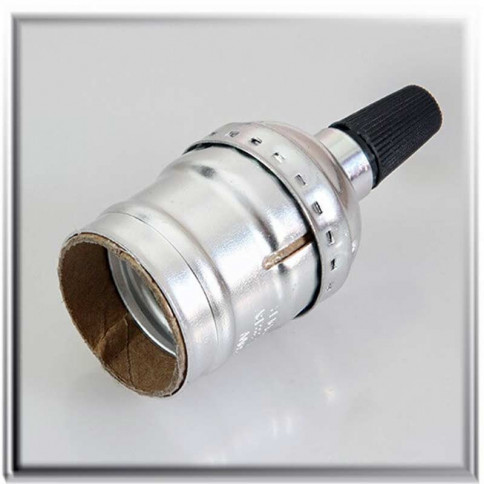

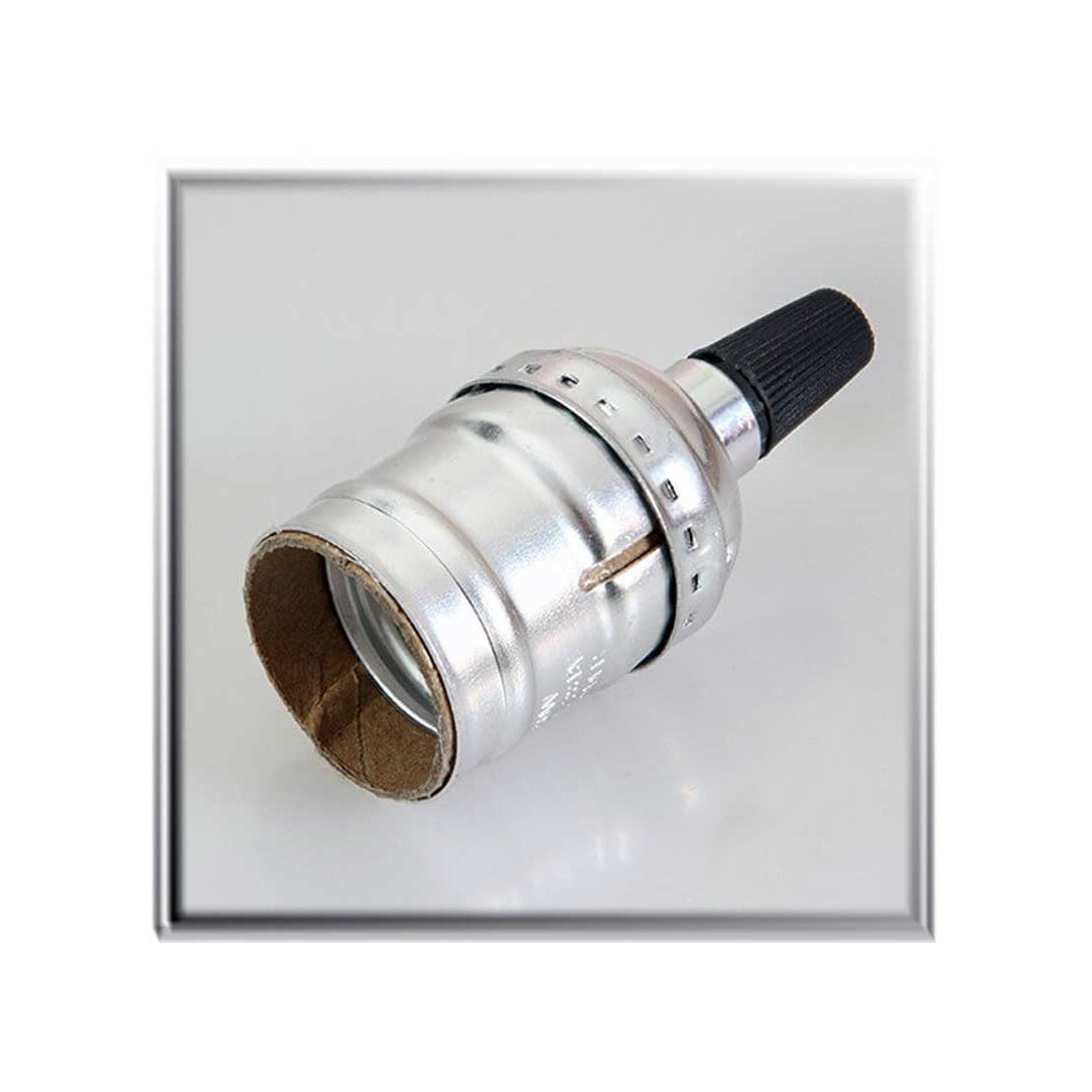

This vintage E27 socket in antique grey finish fits onto hollow M10 threaded rods or M10 threaded cable glands.
Brass construction for incandescent or low-energy lamps,
Features:
Socket for E27 base lamp with M10 threaded sleeve
Base with two-core terminal block, phase and neutral
Material: aluminium, antique grey finish
Dimensions: Ø 35 mm, socket height 55 mm
Cables connected by screws
Wattage: 2A - 250V
Maximum bulb power: 150 Watts
Colour: antique grey
Lampholder sold individually without fixing connector cable.
Electrical safety information.
In terms of electrical connectivity, this lampholder will only be connected to the phase and neutral conductors. Earthing is possible with a 10mm diameter round cable lug placed under the jumper where it is fixed, some pre-wired earthing cables are available at the bottom of the product data sheet.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locking systems are available in the 'You'll like them too' section at the bottom of the product sheet.
This connection without earthing is possible, but it is imperative to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
