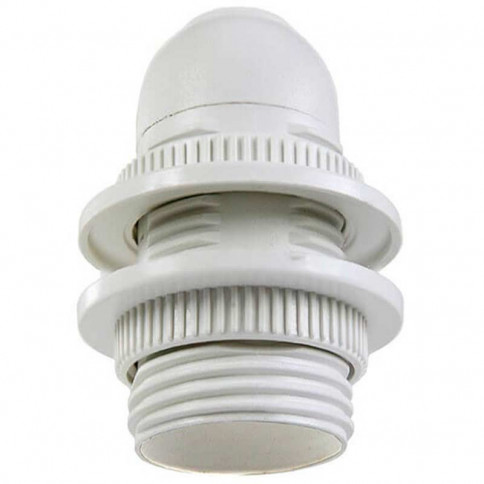

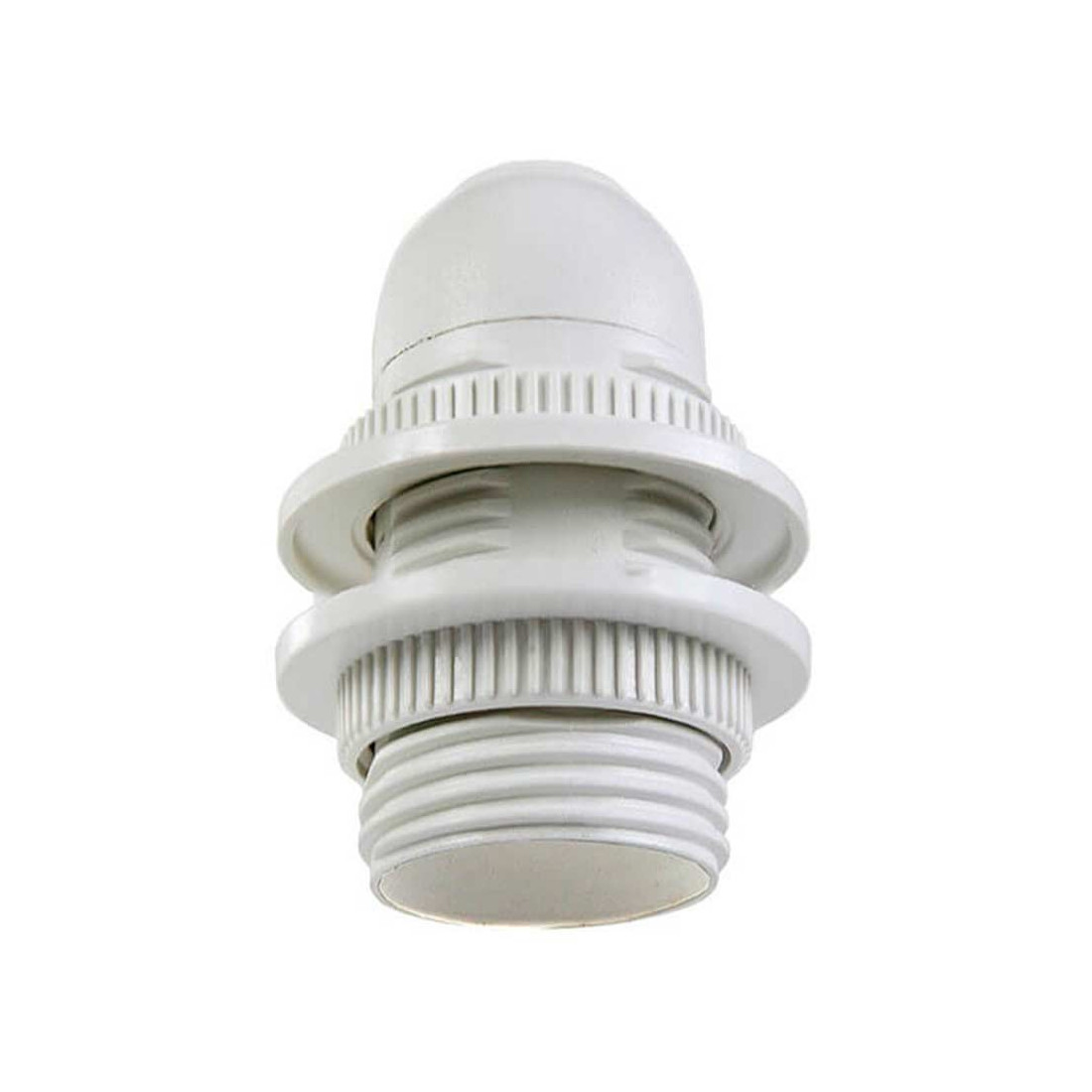

This E12 screw socket fits onto hollow M10 threaded rods or sleeves fitted with an M10 threaded cable gland.
Two threaded retaining rings allow you to adjust the height of your lampshade.
A self-extinguishingwhite plastic construction with double screw ring for incandescent, halogen or low-energy lamps,
Features:
Plastic socket with E12 base for M10 threaded sleeve
Screw lampholder for daylight shade with hole diameter from 28mm to 38mm max.
Material: self-extinguishing polyamide
Automatic cable connection
Socket: E12
Wattage: 2A - 250V
Maximum bulb wattage: 150 Watts
Colour: White
Certification available on request
Electrical safety information.
In terms of electrical connectivity, this plastic lampholder will be installed with phase and neutral wiring - earthing is not necessary. However, if this lampholder is installed with a metal lampholder cover or other metal structure, earthing of these metal parts will be necessary.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
