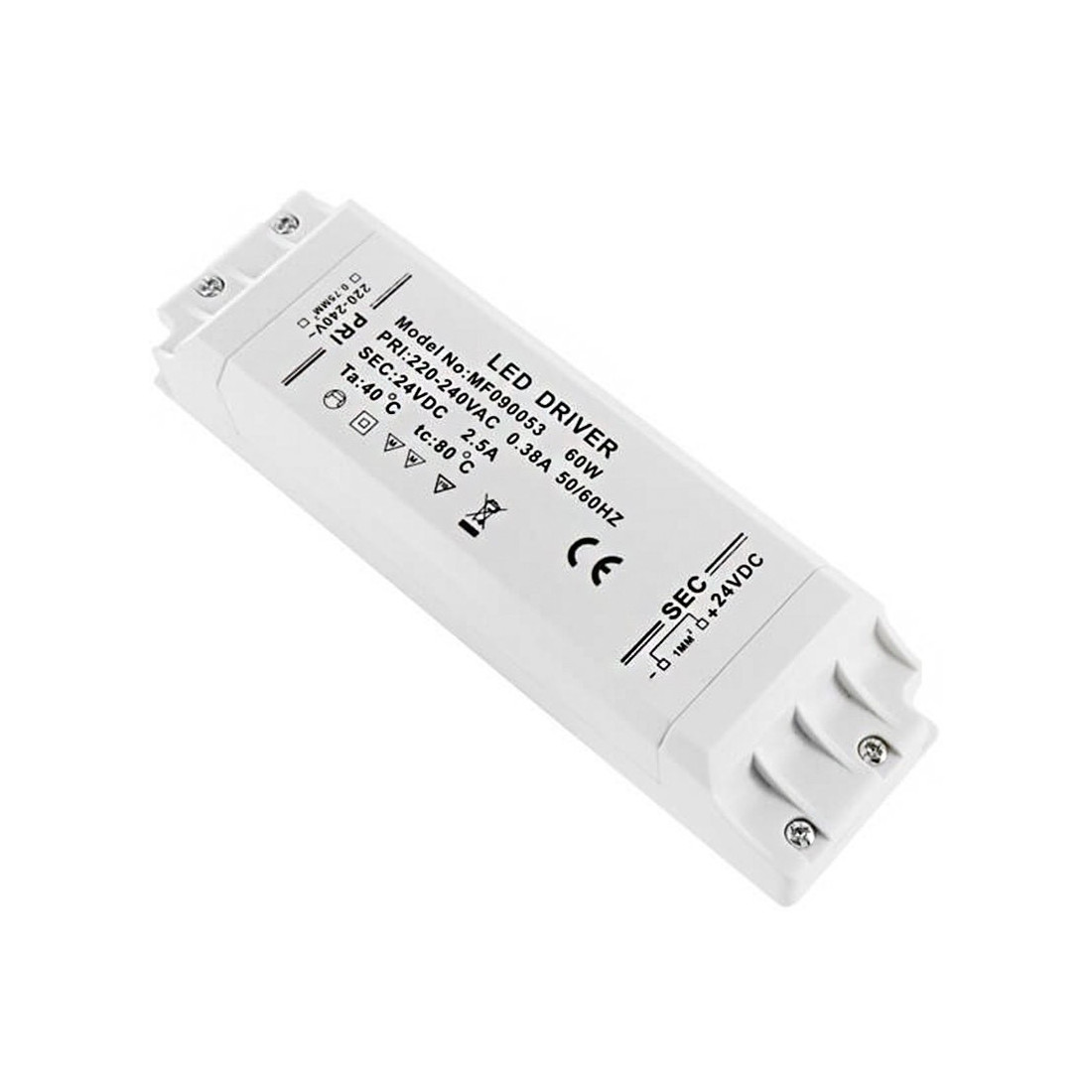

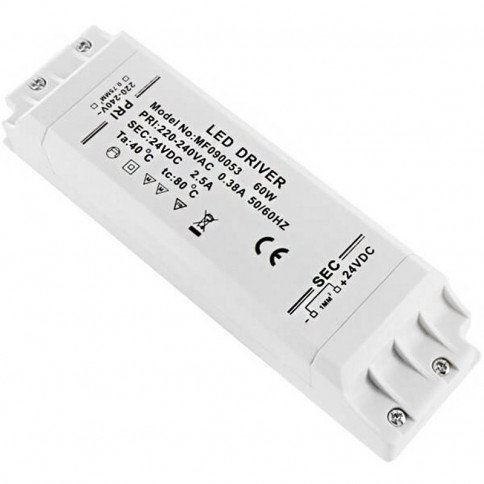

This small LED transformer delivers a stabilised 24 Volt DC voltage with a very low tolerance of ± 0.3 Volt, guaranteeing faultless reliability for the LED source products you connect to this power supply.
Perfect flicker-free brightness thanks to 24 Volt DC.
This power supply is required for most LED bulbs, LED strips and all other products using 24-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 220 volts to 240 volts.
With two connection terminals, one at each end of the box, one for the 230 volt mains input and the other for the 24 volt DC output.
Technical specifications
60 watt - 24 volt transformer
Primary current: 220 to 240 volts AC
Secondary current: 24 volts DC
Type of protection: IP30
Temperature range: -20 to +60°C.
Dimensions: L 170 x W 45 x H 36 mm
Self-extinguishing plastic case
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overheating.
Operating temperature from -10 to + 40°C
Maximum usable power: 60 Watts
Safety assurance: CE & ROHS.
Cable cross-section: primary current 0.75 mm² and 1 mm² for 24 volts
Ideal for indoor or outdoor use, protected from splashing water
Pay attention to the maximum power of the products you are going to connect to this transformer.
For optimum life, it should not be used to 100% of its capacity. A maximum load of 85% is recommended.
Class II equipment with protection against electric shock with double insulation or reinforced insulation exempt from connection to earth.
