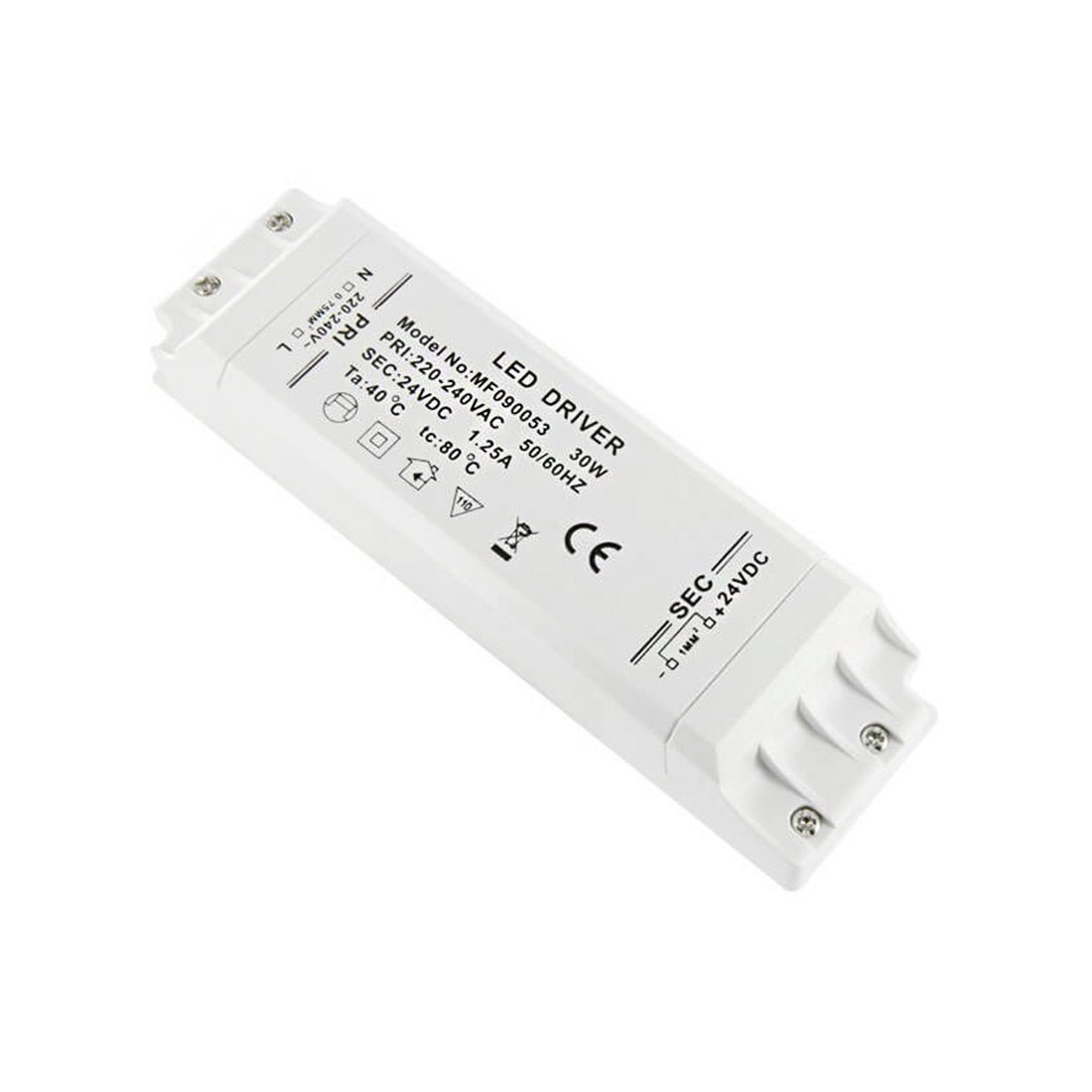

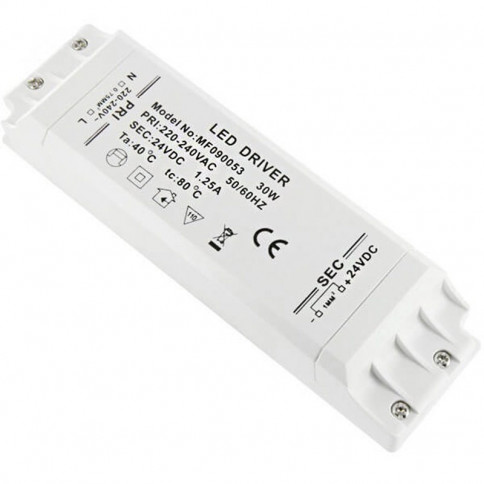

This small LED transformer delivers a stabilised 24 Volt DC voltage with a very low tolerance of ± 0.3 Volt, guaranteeing faultless reliability for the LED source products you connect to this power supply.
Perfect flicker-free brightness thanks to 24 Volt DC.
This power supply is required for most LED bulbs, LED strips and any other products using 24-volt low-voltage LED sources.
Its energy efficiency is excellent, with a cosine phi power factor of 0.85.
Operation over an input voltage range from 220 volts to 240 volts.
With two connection terminals, one at each end of the box, one for the 230 volt mains input and the other for the 24 volt DC output.
For reasons of reliability, it is absolutely essential to adapt the power supply you are going to use with your LED product. For all the information you need, see our article"Choosing your transformer".
Technical specifications
Transformer 30 watts - 24 volts
Primary current: 220 to 240 volts AC
Secondary current: 24 volts DC
Type of protection: IP30
Temperature range: -20 to +60°C.
Dimensions: L 170 x W 45 x H 36 mm
Self-extinguishing plastic case
Insulation class: 2, IEC 60417-5172
Protection against short-circuit, overload, overvoltage and overheating.
Operating temperature from -10 to + 40°C
Maximum usable power: 30 Watts
Safety assurance: CE & ROHS.
Cable cross-section: primary current 0.75 mm² and 1 mm² for 24 volts
Ideal for indoor or outdoor use, protected from splashing water
Pay attention to the maximum power of the products you are going to connect to this transformer.
To ensure optimum service life, it should not be used to 100% of its capacity. A maximum load of 85% is recommended.
