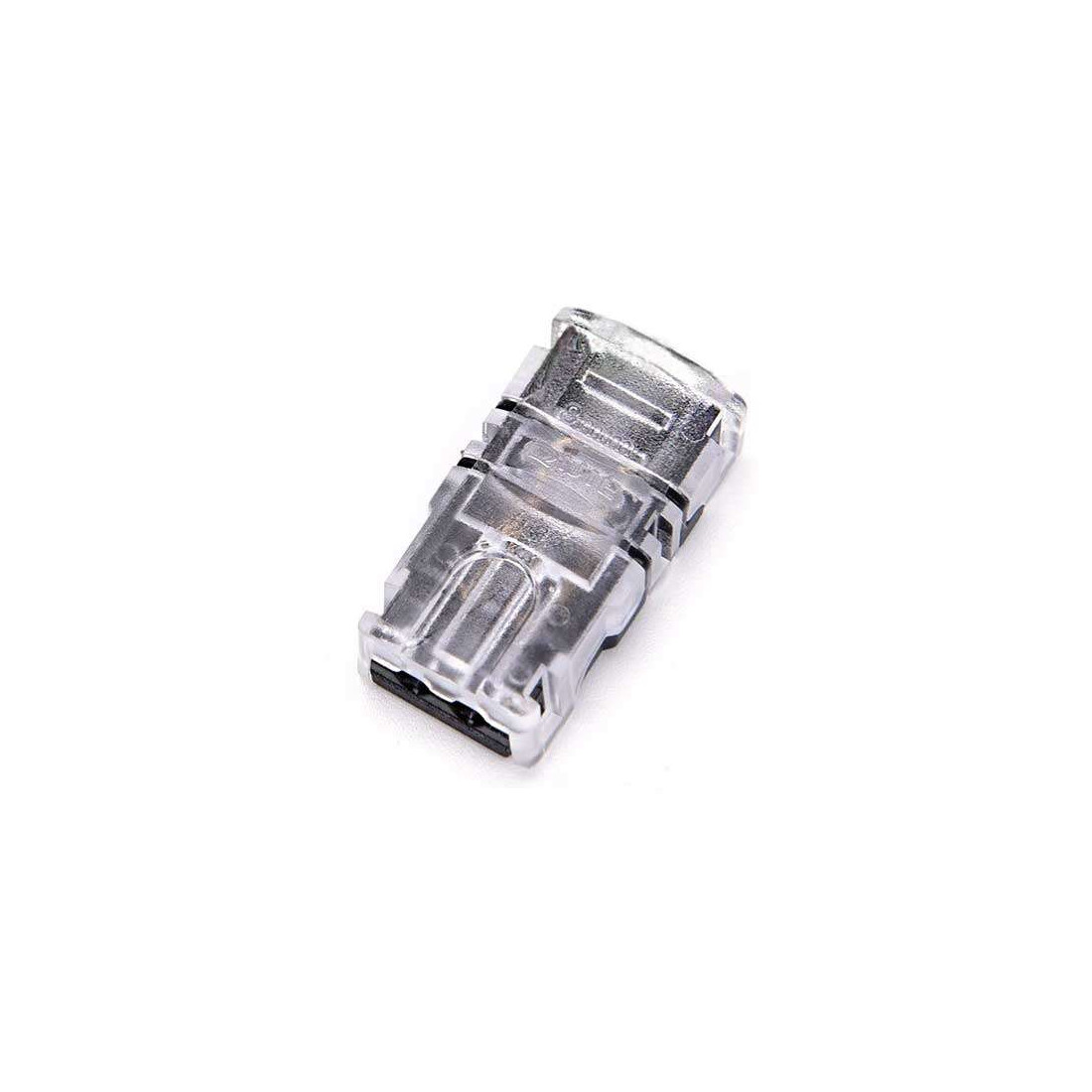

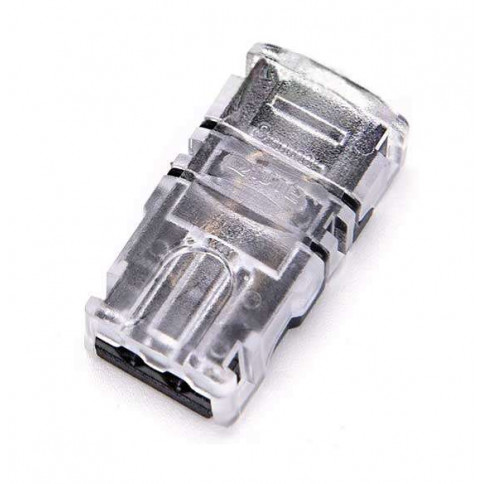

Striplock connection box for 3528 LED ribbon with two connections, it will easily allow you to wire your 8mm LED ribbon without having to solder.
Striplock connectors are perfectly suited to IP65-rated LED ribbons with a silicone gel coating on the surface of the LEDs.
However, they are made slightly differently for IP20 sealing, so you'll need to select the appropriate model for your ribbon.
Note that they are not compatible with IP68 ribbons.
With the Striplock housing , there's no need to strip the wires or remove the silicone seal from the LED ribbon.
Electrical connections are made simply by punching holes in the insulation.
Striplock connectors are perfectly suited to IP65 and IP20 sealed LED strips but are not compatible with IP68 LED strips.
Product description :
For 8mm wide LED strip 3528
Striplock straight connector
Connector dimensions: Length 24 mm, Width 12 mm, Thickness 7.6 mm
Circuit board: 2 tracks
Pin spacing: from 3.7 to 4.5 mm
