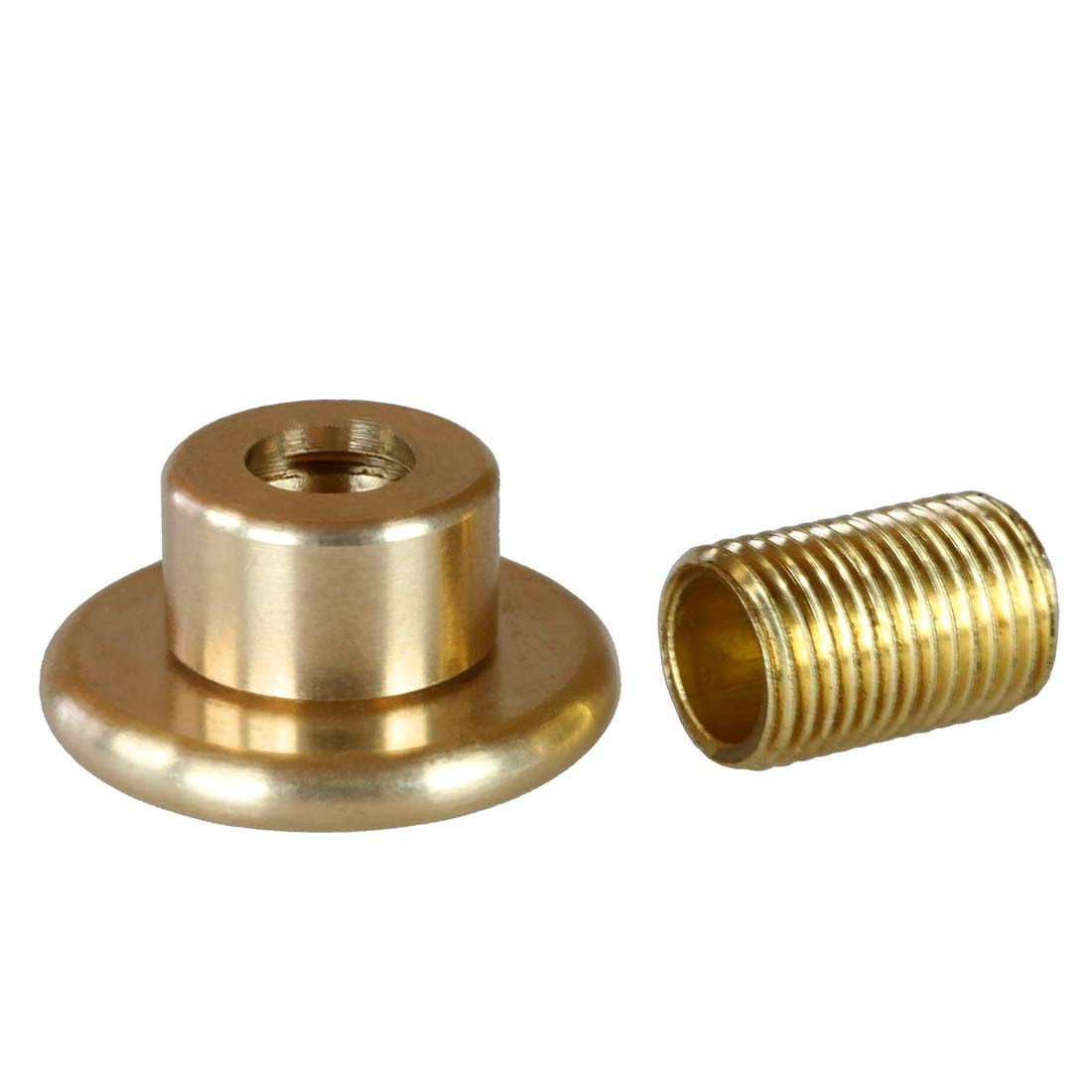

The Jade brass electrical cable clamp is designed for lamp sockets or ceiling roses. It uses tapered silicone to lock cables with a diameter of 4 to 7 mm. Threaded M10 at the base, it allows the addition of a threaded tube of the desired length.
To ensure the cable is held perfectly, simply screw on the top clamping ring.
Product description :
Base diameter: 24mm
Height: 28mm
Cable diameter from 4mm to 7mm
Composition: brass
Thread: M10, 1mm pitch, 7mm deep
Luminaire weight: 4 kg maximum *Information on the maximum load supported by an electric cable*.
Sold individually without the small threaded brass tube. You'll need to choose the threaded tube according to the length you need (these small threaded tubes are available at the bottom of the product sheet).
Can be made to measure
This Jade brass cable clamp offers the flexibility to choose the length of the small M10 threaded sleeve, allowing custom installation to match the depth of the lamp socket thread or when custom manufacturing luminaires, offering a solution that can be adapted to a variety of configurations.
The small M10 threaded tubes required are available at the bottom of the product sheet, in the associated products section.
