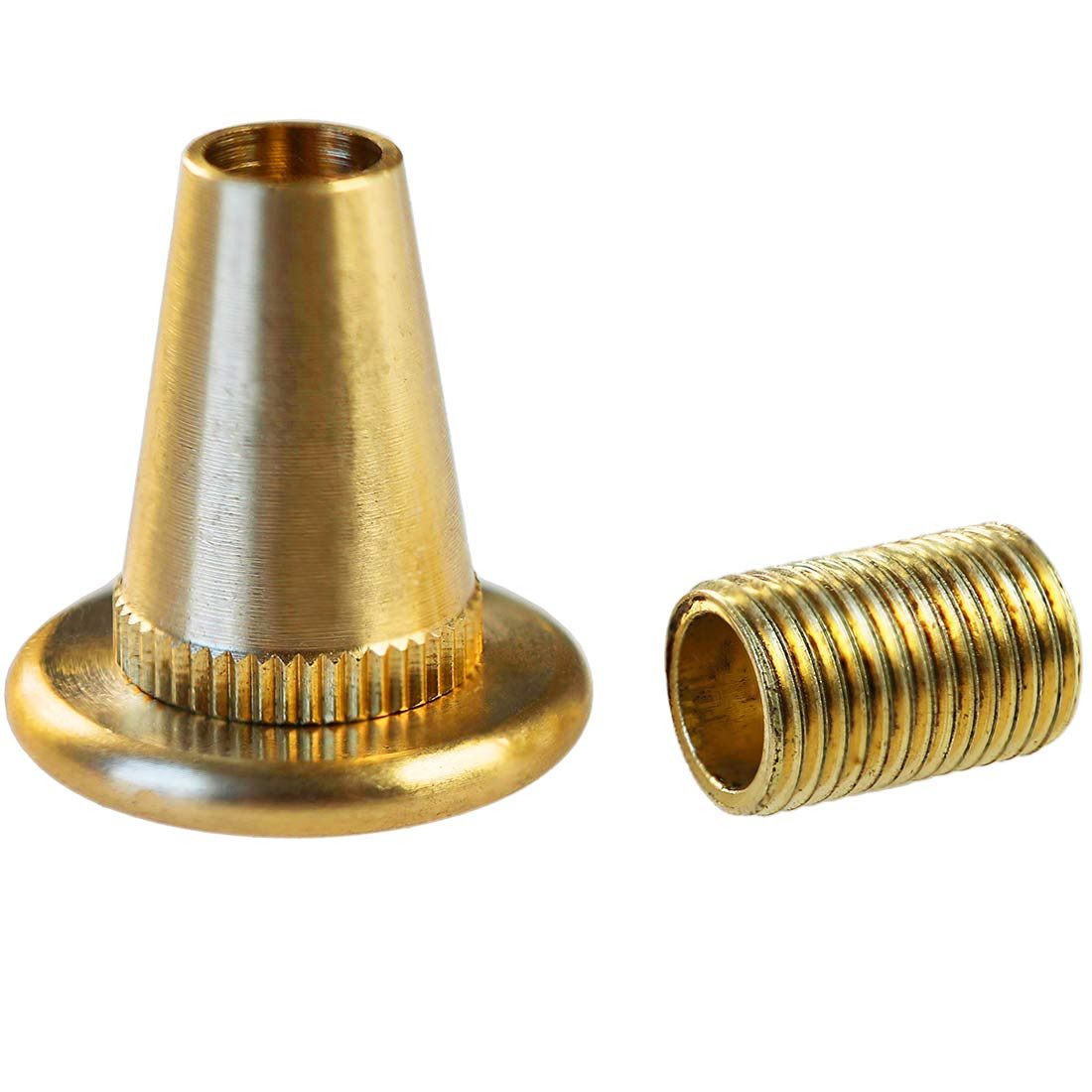

The Hafsa brass electrical cable clamp is specially designed to secure cables in light sockets or ceiling roses. It uses tapered silicone to firmly hold cables with a diameter of 4 to 7 mm .
It also has an M10 threaded base, so you can add a threaded tube of the required length.
To ensure the cable is held perfectly, simply screw on the top clamping ring.
Product description :
Base diameter: 24mm
Height: 28mm
Cable diameter from 4mm to 7mm
Composition: brass
Thread: M10 1mm pitch, 7mm deep
Luminaire weight: 4 kg maximum *Information on the maximum load supported by an electric cable*.
Sold individually without the small threaded brass tube. You will need to choose the threaded tube according to the length you need (these small threaded tubes are available at the bottom of the product sheet).
Can be made to measure
This Hafsa brass cable clamp offers the flexibility to choose the length of the small M10 threaded sleeve, allowing for custom installation according to the depth of the lamp socket thread or when custom manufacturing luminaires, thus offering a solution that can be adapted to various configurations.
The small M10 threaded tubes required are available at the bottom of the product sheet, in the associated products section.
