This vintage E27 socket in antique grey finish fits onto hollow M10 threaded rods or M10 threaded cable glands.
A brass finish for incandescent or low-energy lamps,

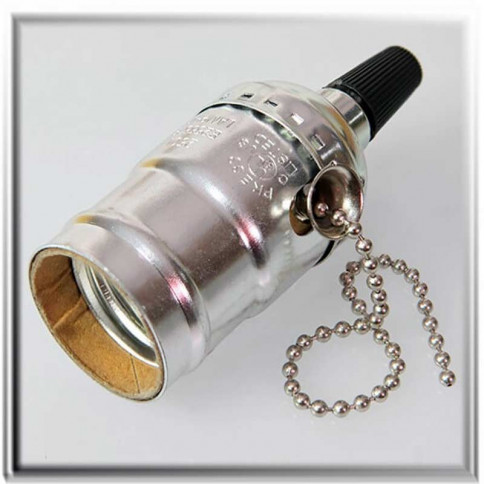

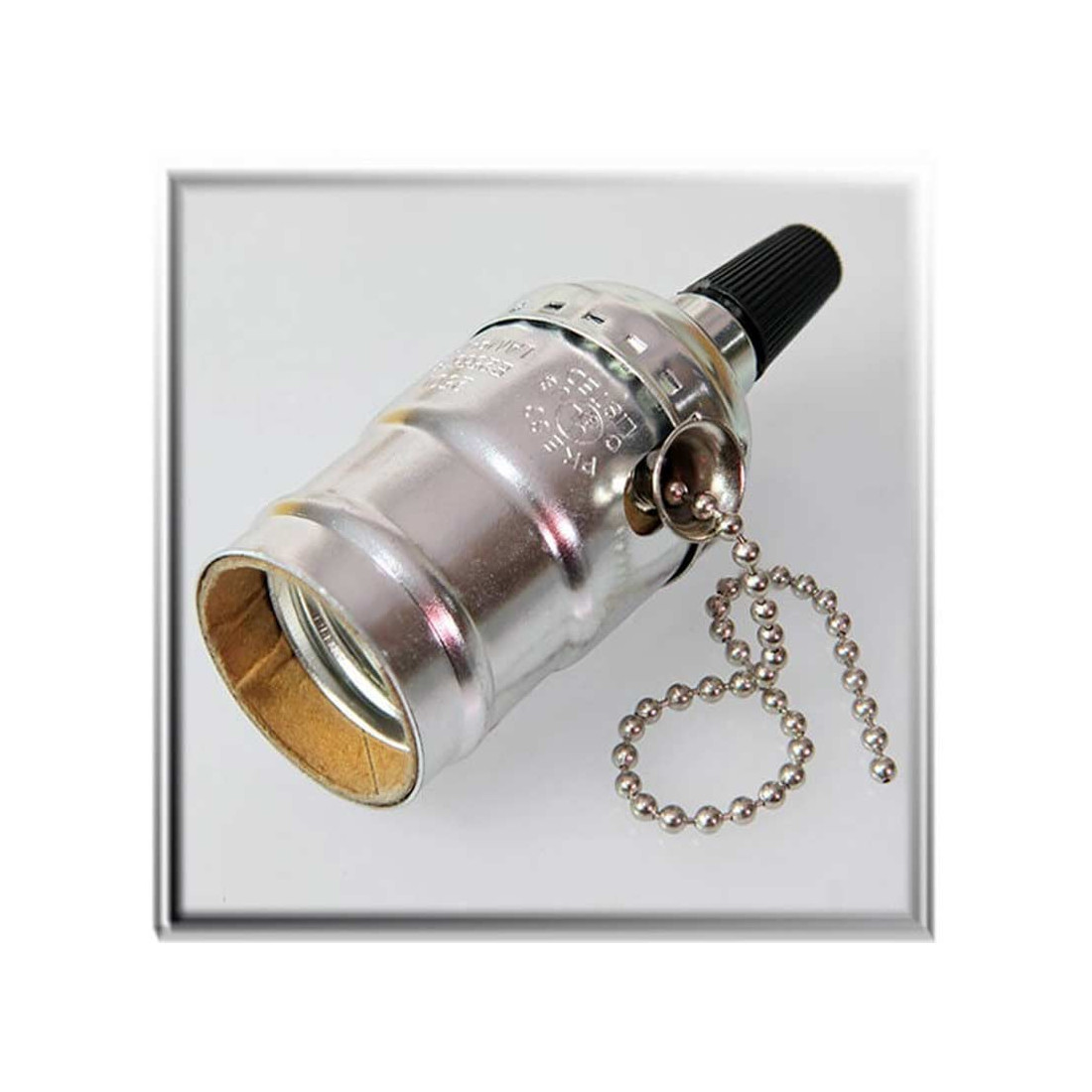

Discover our E27 lampholder, fitted with an elegant and practical chain. Simply pull the chain to light your lamp and enjoy a warm atmosphere.
A second pull turns the lamp off just as easily. This ingenious system, reminiscent of the mechanisms of yesteryear, will add an authentic retro touch to your home.
Ideal for those who appreciate the charm of objects from yesteryear, this socket combines functionality and vintage aesthetics
Features:
Socket for E27 base with M10 threaded sleeve
Base with two-core terminal block, phase and neutral
Material: aluminium, antique grey finish
Dimensions: diameter 35 mm, socket height 71 mm (without cable clamp)
Chain length 15 cm, ball diameter 3.2mm
Cable connection by screws
Wattage: 2A - 250V
Maximum power of bulbs: 300 Watts
Colour: antique grey
Lampholder sold individually without cable clamp
Electrical safety information.
In terms of electrical connectivity, this lampholder will only be connected to the phase and neutral conductors. Earthing is possible with a 10mm diameter round lug earthing cable placed under the jumper where it is fixed, some pre-wired earthing cables are available at the bottom of the product data sheet.
For obvious aesthetic reasons, it is difficult to envisage the use of a large 230 volt 2P plug or socket + earth for a floor-mounted lamp. More commonly, a flat 2-pin plug is used, allowing only phase and neutral to be connected using a two-conductor cable.
This connection without earthing is possible, but it is essential to use an anti-pull-out system for the cable coming out of the lamp. Various cable locking devices can be installed, either in the base of the lamp or directly in the bottom of the lampholder.
These small plastic mechanisms have an anti-rotation and anti-pull function for your power supply cable.
These cable locks are available in the 'You'll like them too' section at the bottom of the product sheet.
