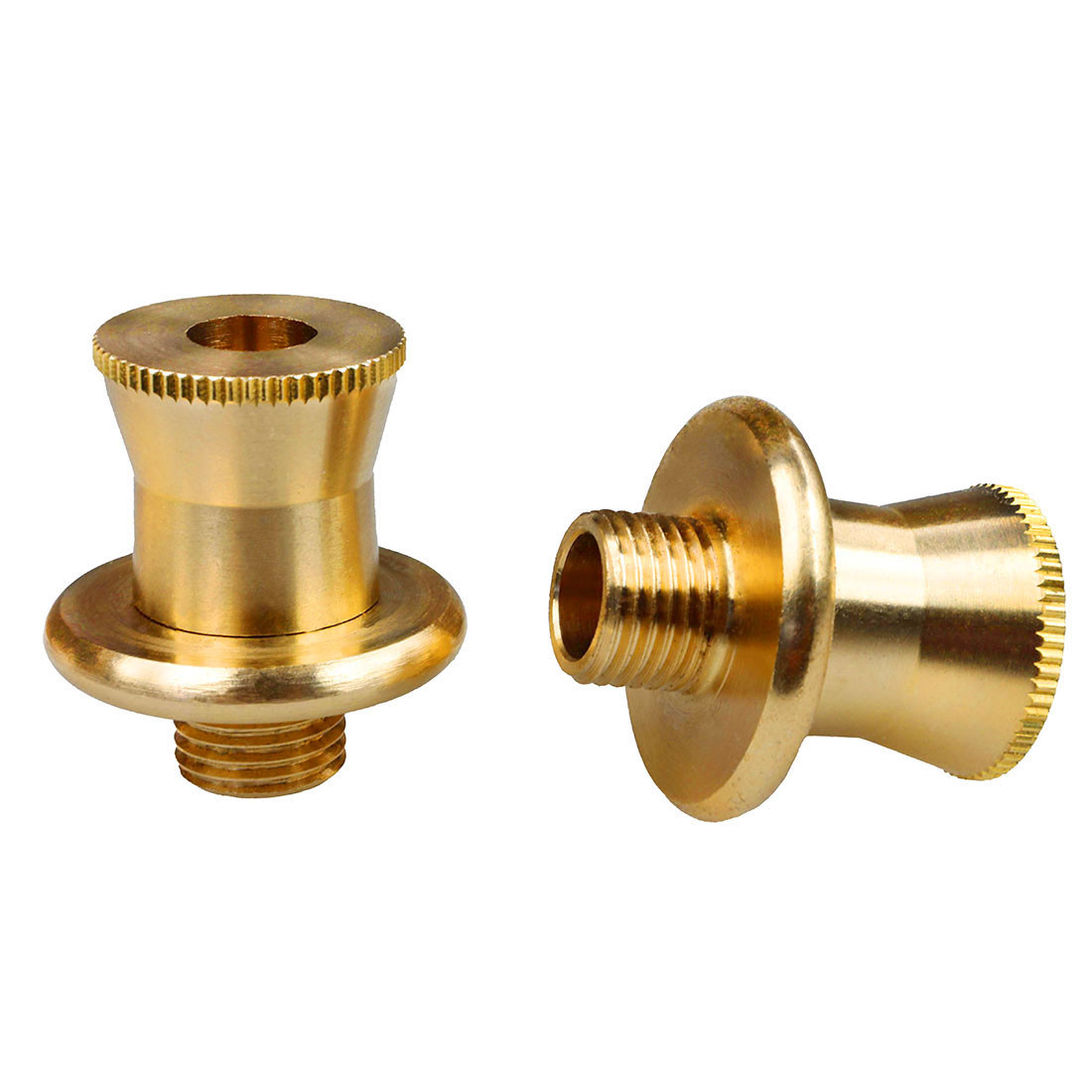

Jewel brass electrical cable clamp for light sockets or ceiling roses. Cable clamp with conical silicone, for passing cables with a diameter of 4 to 7 mm.
Simply screw on the upper clamping ring to hold the cable in place.
There are two lengths of thread for the foot in the different versions available. It's important to choose the length that's right for you: long enough to catch the socket thread, but not too long to facilitate the passage of electrical cables.
Product description :
Base diameter: 24mm
Height: 28mm
Cable diameter from 4mm to 7mm
Composition: brass
Thread: M10 1mm pitch, thread lengths available are 8mm and 15mm depending on the version chosen.
Luminaire weight: 4 kg maximum *Information on the maximum load supported by an electrical cable*.
Sold individually
Can be made to measure
